This is an adjustable spreader beam that provides a versatile solution for handling many different sized loads, ideal for outdoor applications.
Product Features
- Ideal where headroom is not limited.
- Adds stability to lift.
- Choose from a wide range of sizes and capacities.
- Telescoping adjustment at 12 inch increments.
- Select chain or wire rope top rigging.
- Custom designs available.
- Complies with ASME standards.
This beam is a convenient end fitting design that allows us to build a custom size four-point spreader beam with a QUICK SHIP delivery schedule. Capacities up to 9 tons and spreads up to 10’ x 10’.

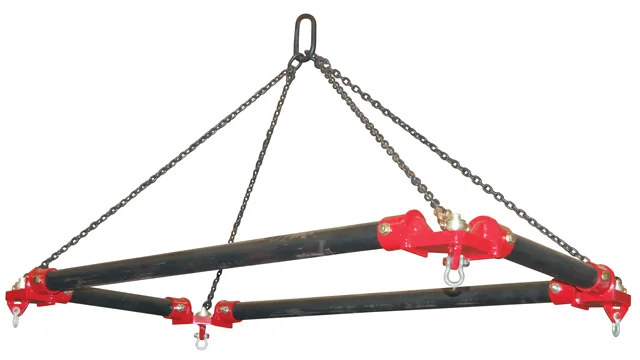

Model 34 Four-Point End Fitting Beam
Bottom Rigging Options
- A. Lower lifting hooks - specify fixed or swivel.
- B. Synthetic load slings.
- C. Chain load slings.
- D. Wire rope load slings.
Note: Some rigging options could increase delivery time.
Product Specifications
Product Features
- New knock-down design is easily transported.
- 6 or 9 ton capacity.
- Spreads up to 10' x 10'.
- Four point spreader beam provides added stability
- Chain top rigging and hoist rings.
- Lower lifting shackles standard - see other options below.
- Complies with ASME standards.
Model AL4 Four-Point Adjust-A-Leg
Product Features
- Allows crane hook to be over the center of gravity in unbalanced or non-symmetrical four point lifts.
- Quickly adjusts to center of gravity.
- Can be locked into place for constant lifts.
- Can be used in conjunction with box type spreader beams.
- Ideal for use in rigging applications and machinery moving.
- Complies with ASME standards.

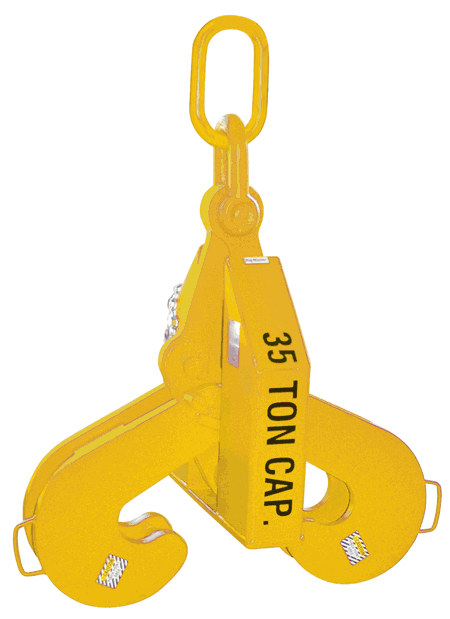

Model F Beam Grabs
Product Features
- Heavy duty design.
- These grabs provide an efficient method for handling wide flange beam sections and plate girders.
- Clamps have a recessed base to accept studs welded to a beam’s surface.
- Beam grabs eliminate the need for slings or chokers.
- Use only for vertical lifting.
- For longer beams or girders, use units in pairs in conjunction with a spreader/lifting beam.
- Complies with ASME standards.

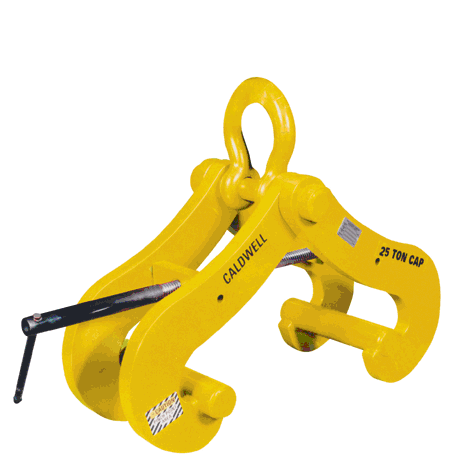

Model GC Girder Clamps
Product Features
- These clamps provide an efficient method for handling wide flange beam sections and plate girders.
- Screw-spindle design ensures positive grip.
- Simple design ensures minimum maintenance.
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
- Jaw opening adjusts to a wide range of beam types and flange widths.
- Use only for vertical lifting.
- Complies with ASME standards.

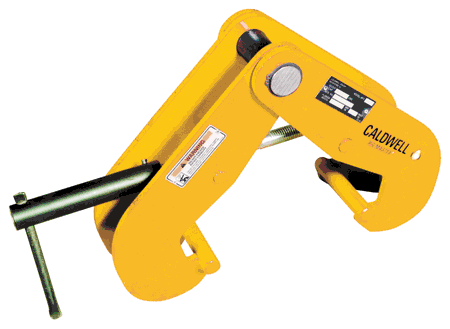

Model BFC Beam Flange Clamps
Product Features
- Rated load capacities from 1 to 10 tons.
- Lightweight and portable design.
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
- Jaw opening adjusts to a wide range of beam types and flange widths.
- Use only for vertical lifting.
- Built-in suspension pin provides lower headroom.
- Available with Large Bail option for oversized hoist hooks.
- Complies with ASME standards.
