Caldwell Coil Lifters 2
Coil Lifters
Page 2 of 2

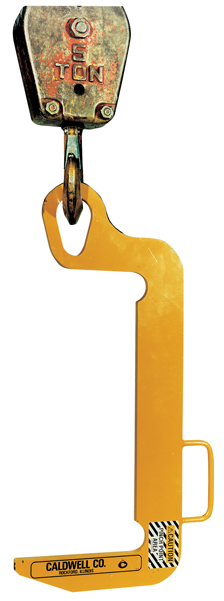

This C-Hook is the perfect solution when handling narrow or slit coils. The design of this lifter will hang level when loaded, unlevel when not loaded. A guide handle is provided to allow operator more control of the lifter.
Product Features
- Handles narrow coils with less coil edge damage.
- More durable than web slings.
- Lightweight for easier handling.
- Built in guide handle for ease of coil positioning.
- Available with optional curved coil saddle.
- Inside radius on hooks avoid coil edge contact.
- Complies with ASME standards.
Quick and easy way to transfer slit coils from an eye horizontal to an eye vertical position.
Product Features
- Easy horizontal to vertical upending of coils.
- Pivoting wedge for easy tilting of stacked coils.
- Wedge acts as retainer.
- Efficient and easy to use.
- Popular for use with small, lightweight coils.
- For use where overhead clearance is limited.
- Specially designed heat treated pivoting wedge.
- Complies with ASME standards.

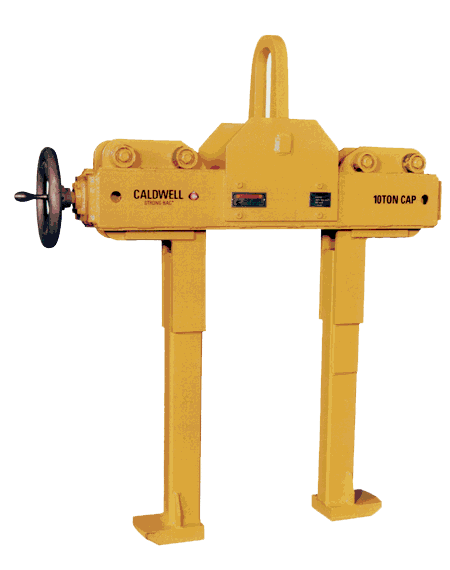

Product Features
- Efficient handling of vertically stacked coils.
- Leg positioning handle is easy to operate and has a positive locking feature.
- Handles any size coil I.D. from 16" to 20".
- Complies with ASME standards.
Product Features
- Handles any size coil I.D. from 16" to 24".
- Lifter legs automatically adjust to coil I.D. being lifted.
- Has higher capacity range than standard lifter.
- Unique design minimizes dunnage required between coils.
- Complies with ASME standards.
Product Features
- Handles any size coil I.D. from 16" to 24".
- Efficient handling of vertically stacked coils.
- Available with chain wheel drive.
- Complies with ASME standards.

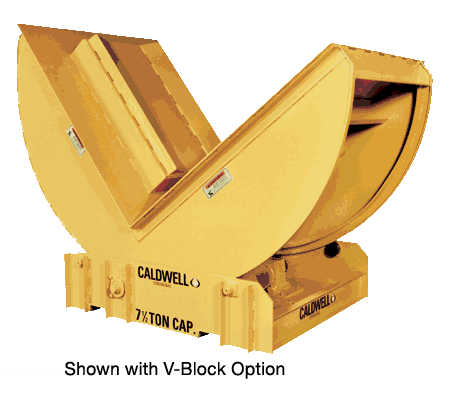

Model 88 Heavy Duty Coil Upender
Product Options
- Larger platforms available.
- V-Block, either standard or urethane faced.
- 180° horizontal rotation which permits loading, and unloading from same side.
- Fork lift truck pick-up pockets.
Product Specifications
Product Features
- Fast and convenient way to upend coils to 90°.
- Heavy duty disc brake will stop load in any position.
- Reversing magnetic starter with 115 volt pendant control.
- Stop travel/over travel limit switches.

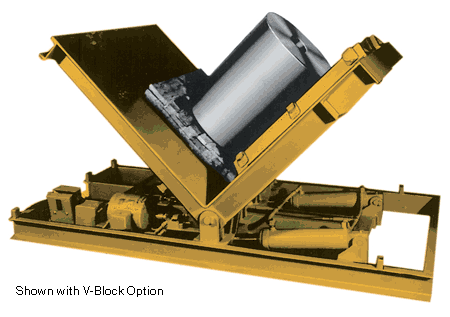

Model 88L Low Platform Coil Upender
Product Options
- Larger platforms available.
- Unequal platform sizes available.
- V-Block, either standard or urethane faced.
- 180° horizontal rotation, which permits loading and unloading from same side.
Product Specifications
Product Features
- Lower platform design offers easier access by operator.
- Fast and convenient way to upend coils to 90°.
- Requires less platform height.
- Magnetic starter with 115 volt pendant control.
- Double acting hydraulic cylinders.
- Relief valve prevents over-capacity rotation.
- Stop limit switches at each end of rotation.
