This rack and pinion style lifter allows for handling of a wide range of sheets and plates with minimum manpower. Lifters are custom designed per application.

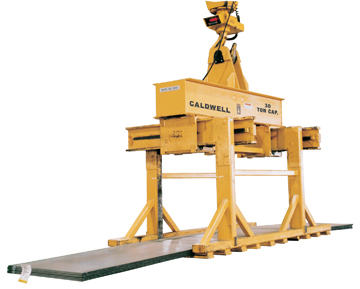

Model 260 Telescopic Sheet Lifter
Product Options
- Powered rotation with or without stops.
- Heavy duty function indicator lights.
- Integral weighing system.
- Maximum open/minimum closed limit switches.
- Carrying angles with dunnage cutouts (pictured above).
- Detachable, auxiliary carrying angles for handling longer loads.
- Chain or cable reel mounted end hooks for thin gauge or extra wide material.
- DC power.
- Electrical reversing motor controls.
- High temperature environment capability.
Product Specifications
Product Features
- Low headroom design.
- Replaceable wear plates.
- Heavy duty worm gear reducers.
- Drive protection includes slip clutch.
- Machined slide arms.
- Designed for ease of maintenance.
- AC power.
The motorized Parallelogram Leg Drive Sheet Lifter is ideal where space between sheet stacks in storage is limited. This style lifter is designed so that the weight of the stacks of sheets or plates keeps the lifter closed. Optional motorized rotation allows the crane operator to spot the stack with precise positioning. Lifters are custom designed per application.
Model 266 Parallelogram Sheet Lifter
Product Options
- Powered rotation with or without stops.
- Heavy duty function indicator lights.
- Integral weighing system.
- Maximum open/minimum closed limit switches.
- Carrying angles with dunnage cutouts.
- Chain or cable reel mounted end hooks for extra wide or thin gauge material.
- DC power.
- High temperature environment capability.
Product Specifications
Product Features
- Narrow aisle space design.
- All pivot points equipped with hardened steel bushings and pins equipped for lubrication.
- Heavy duty worm gear reducer.
- Drive protect includes slip clutch.
- Electrical controls include stall relay.
- Designed for ease of maintenance.
- AC power.
These Vacuum Lifting Beams are designed to handle large sheets or plates of metal in the primary metal industry as well as various other industries. Designed to your material weight and size requirements. Units can be operated with a pendant, crane mounted controls, or radio controls. Lifting beams are custom designed per application.
Model 222 Vacuum Lifting Beam
Product Options
- Powered rotation for horizontal location.
- Durable LED lights and gauges.
- Built in support stands.
- Low vacuum indicator warning system.
- DC power.
- High temperature environment capability up to 600 degrees Fahrenheit.
Product Specifications
Product Features
- Trolley mounted crossarms for ease of adjustment.
- Vacuum pads and crossarms adjustable to handle a wide range of material sizes.
- Handles ferrous and non-ferrous material.
- Assures single sheet/plate handling.
- Minimizes product damage.
- Safety indicator lights.
- Vacuum reserve system to hold load during temporary power failure.
- Design assures quick attachment and release.
- AC power.
This telescoping, rack and pinion style beam allows for handling of a wide variation of product lengths. Lifting beams are custom designed per application.

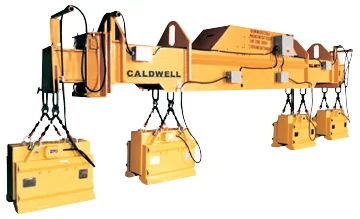

Model 224 Magnet Lifting Beam
Product Options
- Individual 90 degree rotation of magnets for wide loads.
- Parking stand.
- Non-telescopic units are also available.
- Supplied with lifting magnets.
- DC power.
- Electrical reversing motor controls.
- High temperature environment capability.
Product Specifications
Product Features
- Heavy duty rack and pinion telescoping drive.
- Telescopes to handle varying lengths.
- Heavy duty gear reducer.
- Drive protection includes slip clutch.
- Designed for easy maintenance.
- Designed to accommodate your lifting magnets.
- AC power.
