Lifting and Spreader Beams
Lifting and Spreader Beams
Page 1 of 3
Versatile beam had adjustable spreaders and lifting bail standard to allow for handling of a wide range of loads with a single lifting beam. Product can be used with provided shackles or add optional hooks for increased versatilitiy.
Model 17 Adjustable Lifting Beam
Product Features
- Bail adjusts horizontally for lifting unbalanced loads.
- Provides clearance in low headroom applications.
- Spread adjusts in 6” increments along lifting beam.
- Shackles included.
- Optional swivel hooks available.
- Complies with ASME standards.
Adjustable bail, adjustable spreads, and the option to add top rigging for additional stability, this is a versatile lifting / spreader beam.
Model 16 Adjustable Lifting/Spreader Beam
Product Options
- OPTION S - Pair of swivel hooks
- OPTION C - Chain top rigging
- Cross beams (one or two) specify spread(s), contact Caldwell Applications.
Catalog
Product Features
- Has adjustable lifting points.
- Can handle both wide and unbalanced loads.
- Low headroom capability.
- Shackles included.
- Converts to spreader beam with addition of top rigging.
- Optional swivel hooks available.
- Optional chain top rigging available.
- Complies with ASME standards.

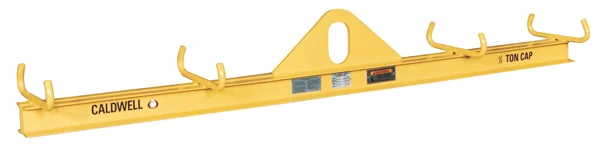

The Model 18 - Fixed Twin Basket Sling Lifting Beam is the ideal solutions as a dedicated lifting beam when handling loads with lifting slings in a basket hitch. "Bull Horn" style hooks set on top of a lifting beam, helping to reduce the overall headroom required for this type of lifting beam.
Model 18 Fixed Basket Swing
Product Features
- Designed to be used with slings in a basket hitch.
- Provides greatest clearance in low headroom applications.
- Two sets of bent bar hooks are standard on units with a spread of 6’ and greater.
- Spread 2 is 1/2 of spread 1.
- Hooks are designed to handle up to a 2” sling eye width.
- Complies with ASME standards.
The Caldwell Fixed Spread Lifting Beam is a light weight solution for handling load of the same size.
Model 19 Fixed Spread
Product Features
- Provides clearance in low headroom applications.
- Eye hooks with hook latches standard.
- Fixed spread.
- Complies with ASME standards.

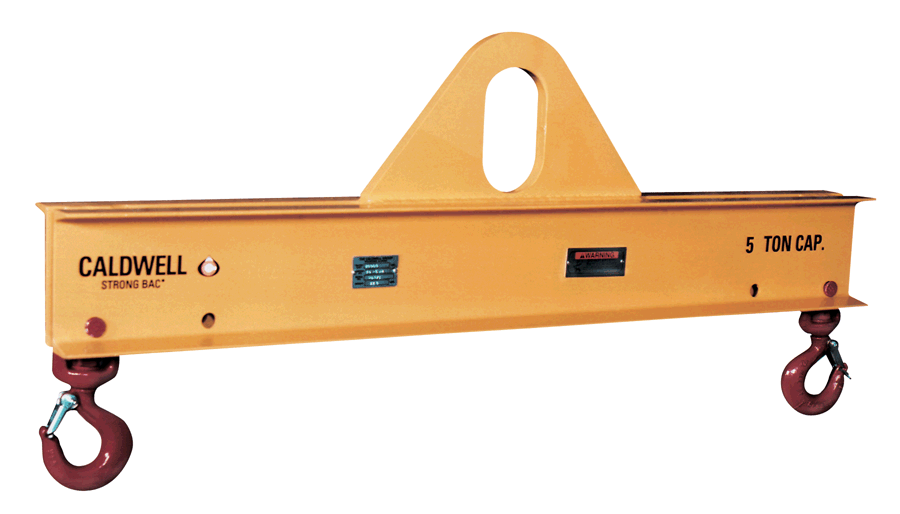

The low headroom solution with multiple spreads for the flexibility to handle a wider range of load sizes.
Model 20 Low Headroom Multi-Spread
Product Options
- OPTION A: Extra Holes or Different Placement of Holes - Allows multiple hook positioning beyond standard 3 spreads. Specify number and spread(s) required.
- OPTION B: Fastpins - For ease of positioning hooks with quick release. Specify number required.
- OPTION C: Extra Hooks - Allows for multiple pick points. Specify number required.
Catalog
Product Features
- Beams over 4’ have 3 spreads. Outside spread, Outside less 1’, Outside less 2’.
- 3’ & 4’ beams have 2 spreads.
- Swivel hooks with hook latches standard.
- Standard capacities to 40 tons, larger capacities and configurations available.
- Complies with ASME standards.

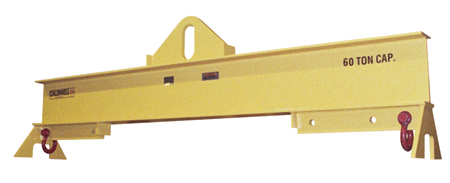

Our model 20H Low Headroom Multi-Spread Lifting Beams are the ideal solution for handling loads of various sizes.
Model 20H Multi-Spread Beam
Product Options
- OPTION A: Extra Holes of Different Placement of Holes - Allows multiple hook positioning beyond standard 3 spreads. Specify number and spread(s) required.
- OPTION B: Extra Shackles and Swivel Hooks - Allows for multiple pick points or eliminated the need to move hardware for different size loads.
- OPTION C: Built In Stand - Keeps beam upright for easy crane hook attachment (pictured above).
Catalog
Product Features
- 'I' beam construction.
- Three spreads to adjust to the load- Outside spread- Middle spread (outside less 1’)- Inside spread (outside less 2’).
- Swivel hooks with hook latches standard.
- Wide range of sizes and capacities available.
- Complies with ASME standards.

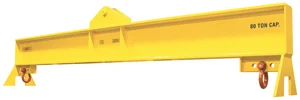

Heavy-duty design and construction provide solutions in standard sizes for those demanding large capacity applications.
Model 20H Hight-Capacity
Product Features
- Heavy duty 'I' beam construction.
- Built in beam stands for easy storage.
- Pin bail to allow for quick attachment of large crane hook.
- Beams have three spreads for flexibility.
- Lifting shackles are standard.
- Complies with ASME standards.
Use with lifting slings for handling loads in a basket hitch. Large hooks help increase ease of use with lifting slings.
Model 22 Heavy Duty Twin Basket Sling
Product Options
- Additional or different placement of lifting hooks.
- Lifting Slings
- Model 22G - For lifting sheets or packages of glass. (Specilized Lifting Slings will be required).
Catalog
Product Features
- Designed to be used with slings in a basket hitch.
- Specially designed hooks with hook latches minimize potential sling damage.
- Two sets of fixed hooks are standard in all lengths over 4’.
- The inner set of hooks (S2) are 1/2 the overall spread.
- Extra spreads available upon request.
- Complies with ASME standards.

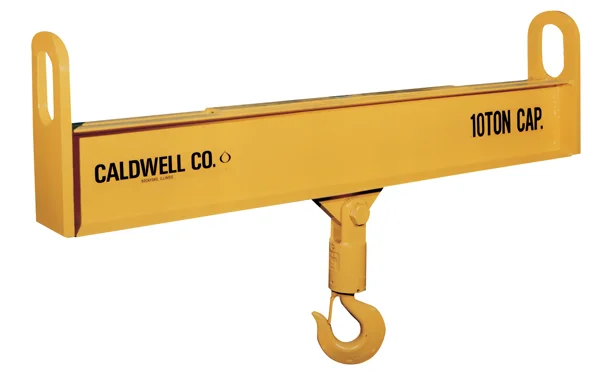

Designed to connect two seperate cranes to create lifing point(s) between the two seperate cranes.
Model 25 Twin Hoist Lifting Beam
Product Options
- OPTION A - Off-set hook for hoistsof different capacities.
- OPTION B - Multiple load hooks, some outside the bail span.
- OPTION C - Center bail and extra pair of hooks for maximum versatility.
Catalog
Product Features
- Use two or more hoists to increase lifting stability.
- Swivel hook with hook latch.
- Several options are available for added versatility.
- Complies with ASME standards.
