Load Leveling
Load Leveling
Adjust lifting bail to be positioned over the load center gravity before lifting the load.
Model 24 Adjustable Bail Lifting Beam
Product Options
- OPTION A - EXTRA HOLES - Allows for multiple hookpositioning. Specify numberand spread(s) required.
- OPTION B - FASPINS - For ease of positioning hooks with quick release.Specify number of faspins required.
- OPTION C - EXTRA HOOKS - Allows for multiple pick points. Specify number of hooks required.
- OPTION D - LOWER HEADROOM - Lifting pin located betweenstructural channel. (Hoist hook information must be supplied).
Product Specifications
Product Features
- Handles off center loads by adjusting the bail before a lift.
- Adjustable spread options available.
- Swivel hooks with hook latches standard.
- Wide range of sizes and capacities available.
- Complies with ASME standards.
Use chain wheel to adjust lifting bail to be positioned over the load center of gravity before lifting the load.
Model 26 Load Leveler
Product Options
- OPTION A - EXTRA HOLES - Allows for multiple hook positioning. Specify number and spread(s) required.*Could increase headroom.
- OPTION B - FASPINS - For ease of positioning hooks with quick release. Specify numberof faspins required.
- OPTION C - EXTRA HOOKS - Allows for multiple pick points.Specify number of hooks required.
- MOTORIZED ADJUSTMENT Please see our Posi-Leveler™
Product Specifications
Product Features
- Handles off center loads by adjusting the bail before a lift.
- Infinite adjustment of bail within range.
- Swivel hooks with hook latches standard.
- Wide range of sizes and capacities available.
- Complies with ASME standards.
The Posi-Leveler™allows for motorized adjustment of the beams central lifting point during the lift to always maintain a balanced load. This feature can be used for fine adjustment of the center of gravity during the lift. Leveling uneven loads during the lift saves rigging time and promotes a safer work environment.
Model 26P Posi-Leveler™
Ideal For
- Bundles
- Odd or irregular shaped loads
- Weldments
- Paper roll handling
- Sheet handling
Product Specifications
Product Features
- Motorized Posi-Leveler™ adjusts to the center of gravity during lift.
- Swivel hooks with hook latches are standard.
- Custom sizes are available.
- Push button pendent control with radio control option.
- Standard bail adjustment 6" each side of center, with optional 12" adjustment each side of center available.
- Complies with ASME standards.

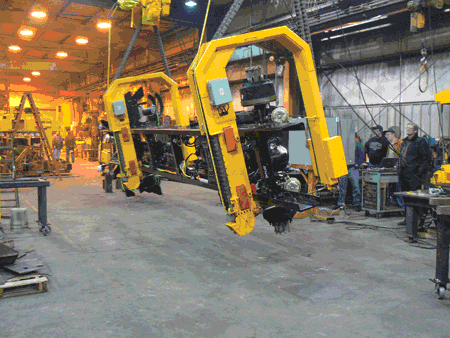

Chassis Master™
The ideal system for inverting truck / bus chassis after suspension installation. Custom designed fixtures clamp to chassis "C-Rails" and contain center of gravity within the turning radius, thus creating a smooth transition. Independent drives allow for fixtures to be positioned to the desited location on the chassis.
Chassis Master
Product Features
- Fixture custom designed to fit your load.
- Gripping pawls contain load and prevent shift during rotation.
- Chain drive rotation allows for precise positioning of the load.
- Complies with ASME standards.

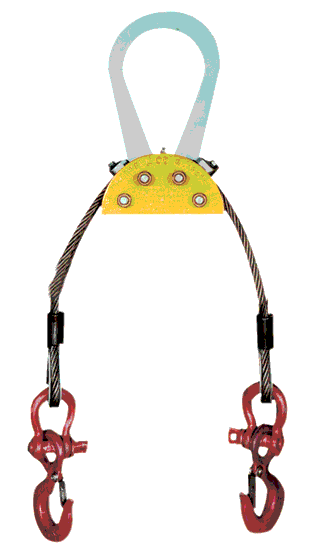

Two Point Adjust-A-Leg® - Model AL2
Model AL2 Two Point Adjust-A-Leg®
Product Features
- Allows crane hook to be over the load’s center of gravity in unbalanced or non-symmetrical two point lifts.
- Quickly adjusts to center of gravity.
- Can be locked into place for constant lifts.
- Can be used in conjunction with spreader beams.
- Ideal for use in rigging applications and machinery moving.
- Complies with ASME standards.
Four Point Adjust-A-Leg® - Model AL4
Model AL4 Four Point Adjust-A-Leg®
Product Features
- Allows crane hook to be over the center of gravity in unbalanced or non-symmetrical four point lifts.
- Quickly adjusts to center of gravity.
- Can be locked into place for constant lifts.
- Can be used in conjunction with box type spreader beams.
- Ideal for use in rigging applications and machinery moving.
- Complies with ASME standards.
