Caldwell Hoists
Caldwell Hoists
- Capacity Range: 1/8 to 8 ton.
- Power Supply: 208-230/460V-3-60 (others are available).
- Control Voltage: 110V.
- Classifications: ASME H4, ISO-M5 or M4, FEM-2m or 1Am.
Model MM Standard Hoist Package
Product Options
- Additional Power Cord Length - specify total length required.
- Tag Line Kit - for up to 30' beam length.
- Tag Line Brackets
Product Specifications
Product Features
- Heavy duty design.
- Upper and lower limit switch.
- Thermal protected fan cooled motor.
- Bottom swivel hook with safety latch.
- Chain container.
- Ergonomically designed push button station.
Note: Top Hook Hoist for easy trolley mounting. Hand chain with drop is 18" less than lift.
- Capacity Range: 1/8 to 8 ton.
- Power Supply: 208-230/460V-3-60 (others are available).
- Control Voltage: 110V.
- Classifications: ASME H4, ISO-M5 or M4, FEM-2m or 1Am.
Model ME Standard Hoist Package
Product Options
- Additional Power Cord Length - specify total length required.
- Tag Line Kit - for up to 30' beam length.
- Tag Line Brackets.
Product Specifications
Product Features
- Heavy duty design.
- Upper and lower limit switch.
- Thermal protected fan cooled motor.
- Bottom swivel hook with safety latch.
- Chain container.
- Ergonomically designed push button station.
Note: Top Hook Hoist for easy trolley mounting, includes push button pendant control (2buttons) with 15ft. power cord standard on 1/4 to 5 ton models. 30ft. power cord standard on 8 ton models wit cable hangers every 5ft.
- Capacity Range: 1/8 to 8 ton.
- Power Supply: 208-230/460V-3-60 (others are available).
- Control Voltage: 110V.
- Classifications: ASME H4, ISO-M5 or M4, FEM-2m or 1Am.
Model EE Standard Hoist Package
Product Options
- Additional Power Cord Length - specify total length required.
- Tag Line Kit - for up to 30' beam length.
- Tag Line Brackets
Product Specifications
Product Features
- Heavy duty design.
- Upper and lower limit switch.
- Thermal protected fan cooled motor.
- Bottom swivel hook with safety latch.
- Chain container.
- Ergonomically designed push button station.
Note: Includes push button pendant control (5buttons) with 30ft. power cord standard and cable hangers every 5ft.

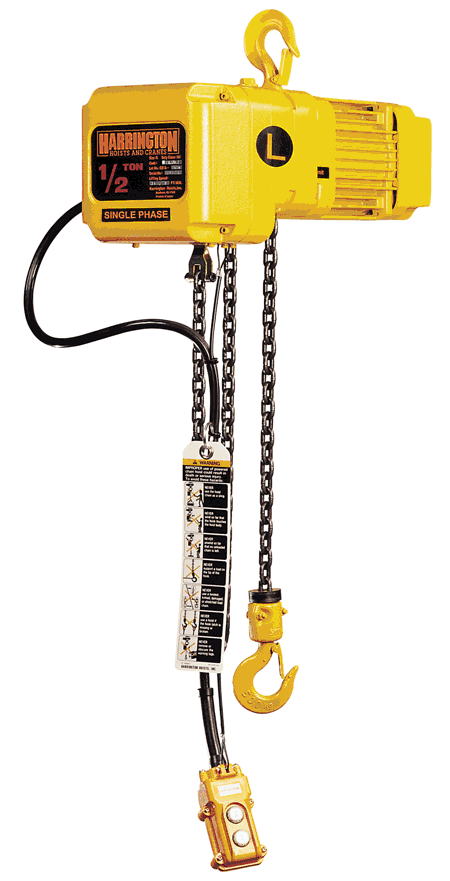

Model HSN Electric Chain Hoist
Product Options
- Extra Lift - specify total lift required.
- Additional Power Cord Length - specify total length required.
- Additional Pendant Length - specify total length required.
- Chain Container
Product Specifications
PRODUCT FEATURES:
- Heavy duty design.
- Extreme duty motor.
- Upper limit switch.
- Fan cooled motor.
- Lightweight aluminum body.
- Capacity Range: 1/4 to 3 ton.
- Control Voltage: 110V.
- Power Supply: 115/230-1-60.
- Classifications: ASME H4, ISO M5 or M4, FEM 2M or 1Am.
- Control Voltage: 110V.
- Power Supply: 115/230-1-60.
- Classifications: ASME H4, ISO M5 or M4, FEM 2M or 1Am.

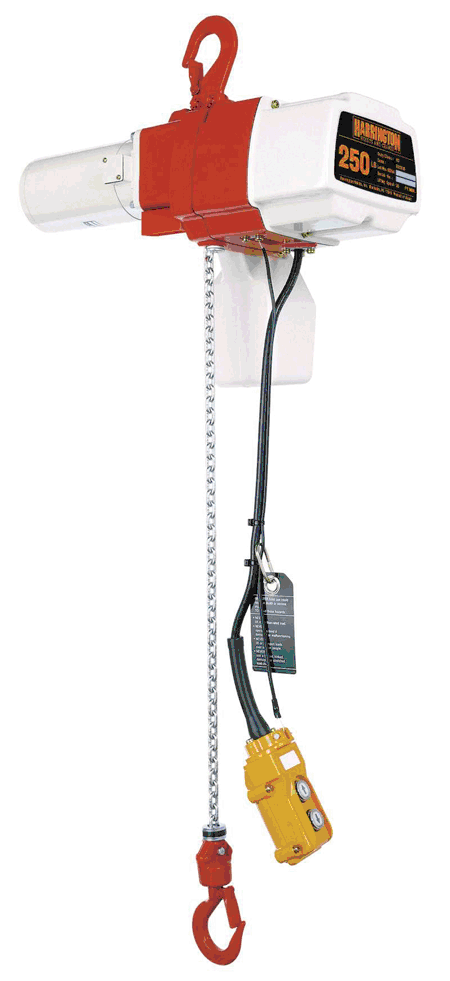

Model HED Electric Chain Hoist
Product Options
- Extra Lift - specify total lift required.
- Additional Power Cord Length - specify total length required.
- Additional Pendant Length - specify total length required.
- Chain Container - for longer lifts.
Product Specifications
Product Features
- Low headroom design.
- Heavy duty motor.
- Double braking system.
- Lightweight aluminum body.
- Single chain fall, through 525 pounds.
- Capacity Range: 125 to 1050 pounds.
- Control Voltage: 120V direct.
- Power Supply: 120-1-60.
- Classifications: ASME H2.

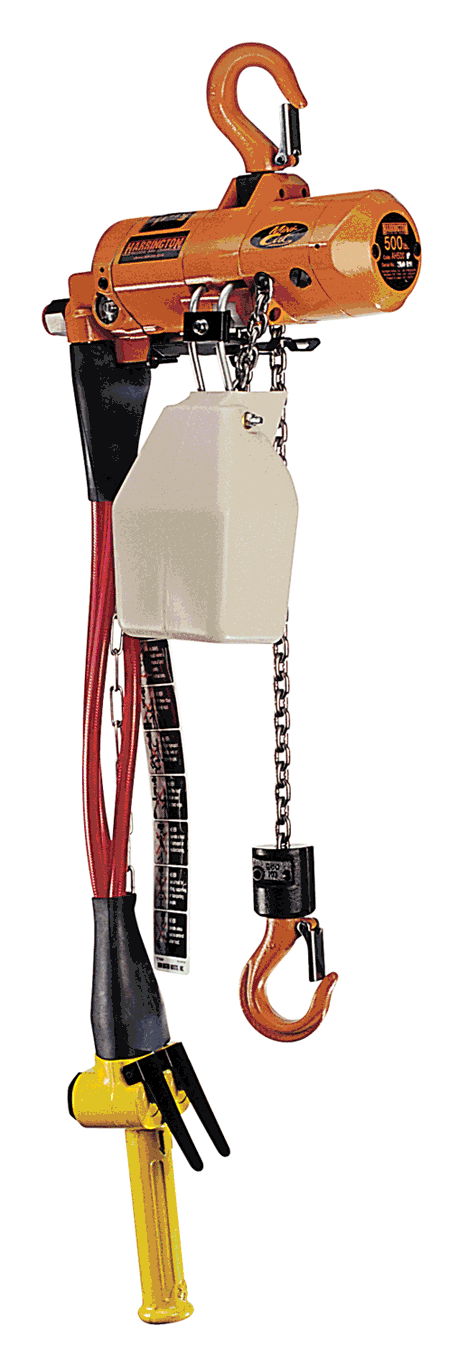

Model HAH Mini Air Hoist
Product Features
- Unlimited duty cycle.
- High lifting speeds.
- Low noise levels.
- Lightweight and compact body.
- Disc motor brake system.
- Pendant, cord, or manipulator controlled.
- Capacity Range: 250 - 500 pounds.
- Air Supply Required: 19-34 CFM at 60-90 PSI.
- Air Lubrication: Minimum 10 to 15 drops of oil per minute.
- Air Filtration: Maximum 5 micron air filter or finer.
- Air Inlet Port: 3/8" NPT.
Model HTC Air Hoist
Product Features
- Unlimited duty cycle.
- High lifting speeds.
- Low noise levels.
- Lightweight and compact body.
- Disc motor brake system.
- Pendant or cord controlled.
- Capacity Range: 250 - 2000 pounds.
- Air Supply Required: 19-34 CFM at 60-90 PSI.
- Air Lubrication: Minimum 10 to 15 drops of oil per minute.
- Air Filtration: Maximum 5 micron air filter or finer.
- Air Inlet Port: 3/8" NPT.
Model BFC Beam Flange Clamps
Product Features
- Rated load capacities from 1 to 10 metric tons.
- Proof test with certificate.
- Lightweight and portable design.
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
- Lock nut prevents inadvertent loosening of clamp.
- Jaw opening adjusts to a wide range of beam types and flange widths.
- Use only for vertical loading.
- Built-in suspension pin provides lower headroom.
- Powder coated finish.
- Available with Large Bail option for oversized hoist hooks.
- 5:1 design factor meets portions of ASME B30.16.
- Complies with ASME B30.20 and BTH-1 standards.
