Caldwell Mill-Duty Lifting Beams
Caldwell Mill-Duty Lifting Beams

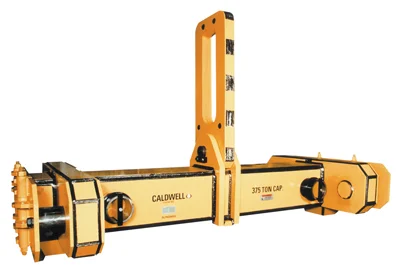

Lifting beams are available in a wide range of capacities and configurations. Lifting beams are designed per application.
Model 220 Lifting Beams
Product Options
- Multiple spreads for hook placement.
- Multiple hoist lifting capability.
- High temperature environment capability.
Product Specifications
Product Features
- Low headroom design.
- Wide range of sizes and capcities.

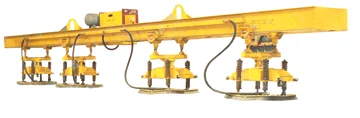

These Vacuum Lifting Beams are designed to handle large sheets or plates of metal in the primary metal industry as well as various other industries. Designed to your material weight and size requirements. Units can be operated with a pendant, crane mounted controls, or radio controls. Lifting beams are custom designed per application.
Model 222 Vacuum Lifting Beam
Product Options
- Powered rotation for horizontal location.
- Durable LED lights and gauges.
- Built in support stands.
- Low vacuum indicator warning system.
- DC power.
- High temperature environment capability up to 600 degrees Fahrenheit.
Product Specifications
Product Features
- Trolley mounted crossarms for ease of adjustment.
- Vacuum pads and crossarms adjustable to handle a wide range of material sizes.
- Handles ferrous and non-ferrous material.
- Assures single sheet/plate handling.
- Minimizes product damage.
- Safety indicator lights.
- Vacuum reserve system to hold load during temporary power failure.
- Design assures quick attachment and release.
- AC power.

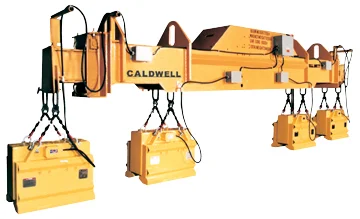

This telescoping, rack and pinion style beam allows for handling of a wide variation of product lengths. Lifting beams are custom designed per application.
Model 224 Magnet Lifting Beam
Product Options
- Individual 90 degree rotation of magnets for wide loads.
- Parking stand.
- Non-telescopic units are also available.
- Supplied with lifting magnets.
- DC power.
- Electrical reversing motor controls.
- High temperature environment capability.
Product Specifications
Product Features
- Heavy duty rack and pinion telescoping drive.
- Telescopes to handle varying lengths.
- Heavy duty gear reducer.
- Drive protection includes slip clutch.
- Designed for easy maintenance.
- Designed to accommodate your lifting magnets.
- AC power.
