Caldwell Roll Lifters
Caldwell Roll Lifters
Quickly delivering custom configured lifting solutions in 7 - 10 days! Our standard model 23QS is a great versatile solution for roll handling needs.
Model 23QS Quickship Roll Lifting Beam
Product Features
Standard beam sizes.
J-Hooks are custom cut per order to fit your specific application. (provide Roll information at time of order.)
Hooks can be fixed or pivot style.
J-Hooks are infinitely adjustable between minimum & maximum spread.
Complies with ASME standards.
Product Specifications
Used to lift rolls with plate style or bent bar J-Hooks. Hooks are designed to support the core mandrel which is through the I.D. of the roll. Fixed beam lengths can be used for single roll widths. Maximum roll diameters will determine length of J-Hooks.

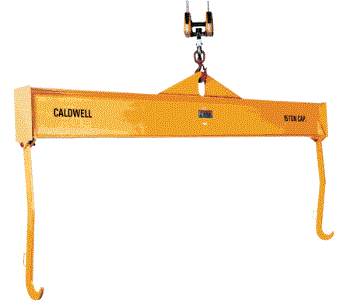

Model 23 Roll Lifting Beams
PRODUCT FEATURES:
Ideal where headroom is limited.
Easy lifting and positioning of rolls.
Adjustable spread options.
Twin hoist capability.
Motorized rotation available.
Complies with ASME standards.
Product Specifications
