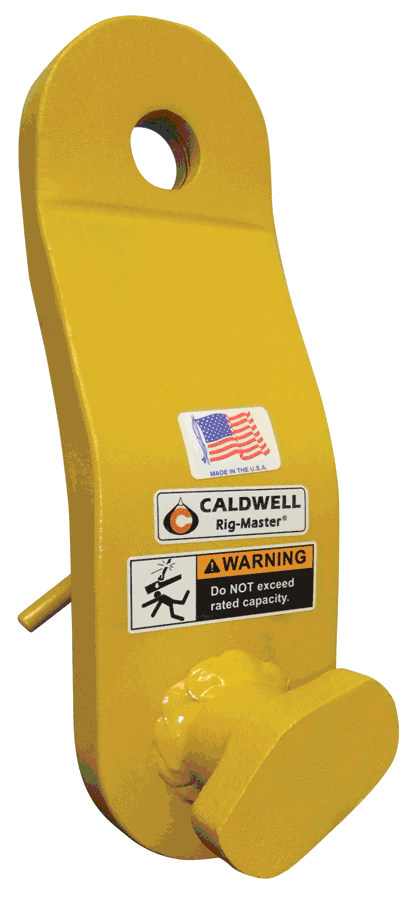

Model LL Corky Container Lifting Lug
Product Features
- An efficient way to lift containers from bottom lifting slot.
- Color identified to separate left and right handed “Corky” lugs.
- Handle indicator shows lug is engaged for lift.
- Complies to use with ASME B30.9 sling capacities.
- OPTION S - 8 1/2 ton shackle.
Adjust lifting bail to be positioned over the load center gravity before lifting the load.

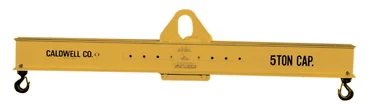

Model 24 Adjustable Bail Lifting Beam
Product Options
- OPTION A - EXTRA HOLES - Allows for multiple hookpositioning. Specify numberand spread(s) required.
- OPTION B - FASPINS - For ease of positioning hooks with quick release.Specify number of faspins required.
- OPTION C - EXTRA HOOKS - Allows for multiple pick points. Specify number of hooks required.
- OPTION D - LOWER HEADROOM - Lifting pin located betweenstructural channel. (Hoist hook information must be supplied.)
Product Specifications
Product Features
- Handles off center loads by adjusting the bail before a lift.
- Adjustable spread options available.
- Swivel hooks with hook latches standard.
- Wide range of sizes and capacities available.
- Complies with ASME standards.
Model AL4 Four Point Adjust-A-Leg®
Product Features
- Allows crane hook to be over the center of gravity in unbalanced or non-symmetrical four point lifts.
- Quickly adjusts to center of gravity.
- Can be locked into place for constant lifts.
- Can be used in conjunction with box type spreader beams.
- Ideal for use in rigging applications and machinery moving.
- Complies with ASME standards.
This beam is a convenient end fitting design that allows us to build a custom size four-point spreader beam with a QUICK SHIP delivery schedule. Capacities up to 9 tons and spreads up to 10’ x 10’.
Model 34 Four Point End Fitting Beam
Product Options
- A. Lower lifting hooks - specify fixed or swivel.
- B. Synthetic load slings.
- C. Chain load slings.
- D. Wire rope load slings.
Note: Some rigging options could increase delivery time.
Product Specifications
Product Features
- New knock-down design is easily transported.
- 6 or 9 ton capacity.
- Spreads up to 10' x 10'.
- Four point spreader beam provides added stability
- Chain top rigging and hoist rings.
- Lower lifting shackles standard - see other options below.
- Complies with ASME standards.
Use chain wheel to adjust lifting bail to be positioned over the load center of gravity before lifting the load.
Model 26 Load Leveler
Product Options
- OPTION A - EXTRA HOLES - Allows for multiple hook positioning. Specify number and spread(s) required.*Could increase headroom.
- OPTION B - FASPINS - For ease of positioning hooks with quick release. Specify numberof faspins required.
- OPTION C - EXTRA HOOKS - Allows for multiple pick points.Specify number of hooks required.
- MOTORIZED ADJUSTMENT Please see our Posi-Leveler™
Product Specifications
Product Features
- Handles off center loads by adjusting the bail before a lift.
- Infinite adjustment of bail within range.
- Swivel hooks with hook latches standard.
- Wide range of sizes and capacities available.
- Complies with ASME standards.
The Posi-Leveler™allows for motorized adjustment of the beams central lifting point during the lift to always maintain a balanced load. This feature can be used for fine adjustment of the center of gravity during the lift. Leveling uneven loads during the lift saves rigging time and promotes a safer work environment.
Model 26P Posi-Leveler™ Motorized Load Leveler
Idea for
- Bundles
- Odd or irregular shaped loads
- Weldments
- Paper roll handling
- Sheet handling
Product Specifications
Product Features
- Motorized Posi-Leveler™ adjusts to the center of gravity during lift.
- Swivel hooks with hook latches are standard.
- Custom sizes are available.
- Push button pendent control with radio control option.
- Standard bail adjustment 6" each side of center, with optional 12" adjustment each side of center available.
- Complies with ASME standards.
This series of special spreader systems can be designed to lift loads of almost any size, or weight. Certain adjustability characteristics allow for a wide range of usage as well as handling unbalanced loads where the center of gravity is substantially off center.
Model 38 Special Spreader System
Spreader Beam Options
- C. Fixed length/width spreader design in rigid or bolt together style. Specify style required.
- D. Telescopic length/width spreader design to handle loads of varying sizes. Specify min./max. lengths required for spreader length and/or width.
Product Specifications
Top Rigging Options
- A. Fixed length 4-leg wire rope or chain sling.
- B. Four point Adjust-A-Leg®load leveling sling for unbalanced loads.
Bottom Rigging Options
The type of bottom rigging required is dependent on the location of the load pick points in relation to its center of gravity. Some common applications require:
- E. Top or bottom container lifting lugs with wire rope slings.
- F. Chain slings with hook attachments.
- G. Nylon/polyester web slings
- H.Boat lifting belly slings for marine applications.
- I. Vehicle lifting wheel nets.
