Model H90 Steel - Fixed Height
Product Features
- Adjustable span standard on 10’-16’ spans through 5 ton.
- Bolted connections on spans of 20’-24’ and all 8 ton units.
- Heavy duty supported leg design.
- Balanced design allows for easy rolling, even under load.
- Conforms to AISC, OSHA, and CMAA specifications.
- Simple bolt together construction.
- Easy setup and maintenance.
- 4 - steel swivel casters standard.
- Assembly instructions provided.
- For our optional gantry crane features, please see page H.15.

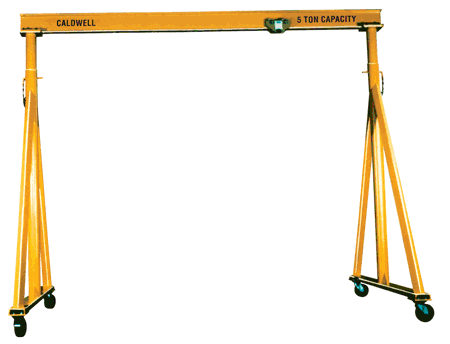

Model K90 Steel - Adjustable Height
Product Features
- Adjustable span standard on 10’-16’ spans through 5 ton.
- Bolted connections on spans of 20’-24’ and all 8 ton units.
- Heavy duty supported leg design.
- Balanced designed allows for easy maneuvering, even under load.
- Conforms to AISC, OSHA and CMAA specifications.
- Simple bolted construction.
- Easy set up and maintenance.
- 4-steel swivel casters standard.
- Height & span adjustability.
- Height adjustable down from maximum in 12" increments.
- For our optional gantry crane features, please see page H.15.
The all aluminum gantry is perfect for applications where the crane weight is critical.

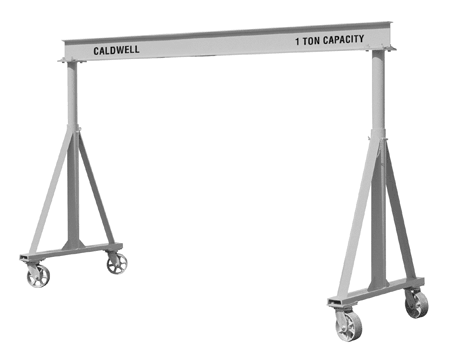

Model HA90 Aluminum - Fixed Height
Product Features
- Lightweight aluminum.
- Balanced design allows for easy rolling, even under load.
- Conforms to AISC, OSHA and CMAA specifications.
- Bolt together construction.
- Easy set up and maintenance.
- 4 poly-coated swivel casters.
- For our optional gantry crane features, please see page H.15.
The all aluminum gantry is perfect for applications where the crane weight is critical.
Model KA90 Aluminum - Adjustable Height
Product Features
- Lightweight aluminum.
- Balanced design allows for easy rolling, even under load.
- Conforms to AISC, OSHA and CMAA specifications.
- Bolt together construction.
- Easy set up and maintenance.
- 4 poly-coated swivel casters.
- Height and span adjustability.
- Height adjustable down from maximum in 6" increments.
- For our optional gantry crane features, please see page H.15.
