Jibs, Gantries and Hoists 3

Jibs, Gantries and Hoists

Page 3 of 3


  • Capacity Range: 1/8 to 8 ton.
  • Power Supply: 208-230/460V-3-60 (others are available).
  • Control Voltage: 110V.
  • Classifications: ASME H4, ISO-M5 or M4, FEM-2m or 1Am.

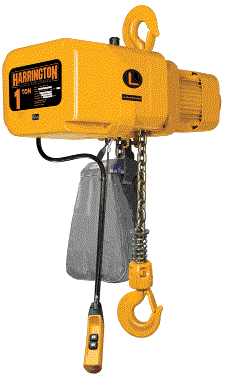

Model MM Standard Hoist Package

Product Features

  • Heavy duty design.
  • Upper and lower limit switch.
  • Thermal protected fan cooled motor.
  • Bottom swivel hook with safety latch.
  • Chain container.
  • Ergonomically designed push button station.

Product Options

  • Additional Power Cord Length - specify total length required.
  • Tag Line Kit - for up to 30' beam length.
  • Tag Line Brackets

Product Specifications

Note: Top Hook Hoist for easy trolley mounting. Hand chain with drop is 18" less than lift.


  • Capacity Range: 1/8 to 8 ton.
  • Power Supply: 208-230/460V-3-60 (others are available).
  • Control Voltage: 110V.
  • Classifications: ASME H4, ISO-M5 or M4, FEM-2m or 1Am.

Model ME Standard Hoist Package

Product Features

  • Heavy duty design.
  • Upper and lower limit switch.
  • Thermal protected fan cooled motor.
  • Bottom swivel hook with safety latch.
  • Chain container.
  • Ergonomically designed push button station.

Product Options

  • Additional Power Cord Length - specify total length required.
  • Tag Line Kit - for up to 30' beam length.
  • Tag Line Brackets.

Product Specifications





Note:  Top Hook Hoist for easy trolley mounting, includes push button pendant control (2buttons) with 15ft. power cord standard on 1/4 to 5 ton models.  30ft. power cord standard on 8 ton models wit cable hangers every 5ft.


  • Capacity Range: 1/8 to 8 ton.
  • Power Supply: 208-230/460V-3-60 (others are available).
  • Control Voltage: 110V.
  • Classifications: ASME H4, ISO-M5 or M4, FEM-2m or 1Am.

Model EE Standard Hoist Package

Product Features

  • Heavy duty design.
  • Upper and lower limit switch.
  • Thermal protected fan cooled motor.
  • Bottom swivel hook with safety latch.
  • Chain container.
  • Ergonomically designed push button station.

Product Options

  • Additional Power Cord Length - specify total length required.
  • Tag Line Kit - for up to 30' beam length.
  • Tag Line Brackets

Product Specifications



Note:  Includes push button pendant control (5buttons) with 30ft. power cord standard and cable hangers every 5ft.

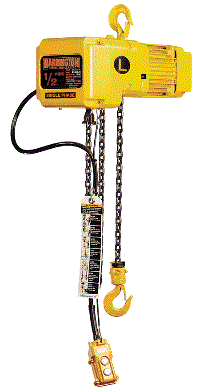

Model HSN Electric Chain Hoist

PRODUCT FEATURES:

  • Heavy duty design.
  • Extreme duty motor.
  • Upper limit switch.
  • Fan cooled motor.
  • Lightweight aluminum body.
  • Capacity Range: 1/4 to 3 ton.
  • Control Voltage: 110V.
  • Power Supply: 115/230-1-60.
  • Classifications: ASME H4, ISO M5 or M4, FEM 2M or 1Am.
  • Control Voltage: 110V.
  • Power Supply: 115/230-1-60.
  • Classifications: ASME H4, ISO M5 or M4, FEM 2M or 1Am.



Product Options

  • Extra Lift - specify total lift required.
  • Additional Power Cord Length - specify total length required.
  • Additional Pendant Length - specify total length required.
  • Chain Container

Product Specifications

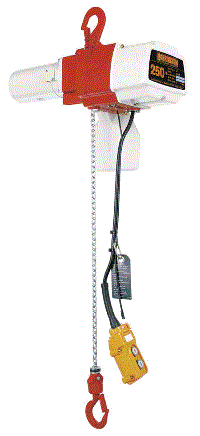

Model HED Electric Chain Hoist

Product Features

  • Low headroom design.
  • Heavy duty motor.
  • Double braking system.
  • Lightweight aluminum body.
  • Single chain fall, through 525 pounds.
  • Capacity Range: 125 to 1050 pounds.
  • Control Voltage: 120V direct.
  • Power Supply: 120-1-60.
  • Classifications: ASME H2.

Product Options

  • Extra Lift - specify total lift required.
  • Additional Power Cord Length - specify total length required.
  • Additional Pendant Length - specify total length required.
  • Chain Container - for longer lifts.

Product Specifications

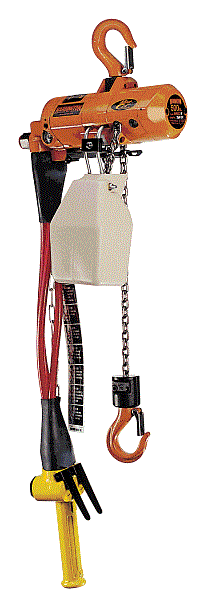

Model HAH Mini Air Hoist

Product Features

  • Unlimited duty cycle.
  • High lifting speeds.
  • Low noise levels.
  • Lightweight and compact body.
  • Disc motor brake system.
  • Pendant, cord, or manipulator controlled.
  • Capacity Range: 250 - 500 pounds.
  • Air Supply Required: 19-34 CFM at 60-90 PSI.
  • Air Lubrication: Minimum 10 to 15 drops of oil per minute.
  • Air Filtration: Maximum 5 micron air filter or finer.
  • Air Inlet Port: 3/8" NPT.

Product Specifications


Model HTC Air Hoist

Product Features

  • Unlimited duty cycle.
  • High lifting speeds.
  • Low noise levels.
  • Lightweight and compact body.
  • Disc motor brake system.
  • Pendant or cord controlled.
  • Capacity Range: 250 - 2000 pounds.
  • Air Supply Required: 19-34 CFM at 60-90 PSI.
  • Air Lubrication: Minimum 10 to 15 drops of oil per minute.
  • Air Filtration: Maximum 5 micron air filter or finer.
  • Air Inlet Port: 3/8" NPT.



Product Specifications

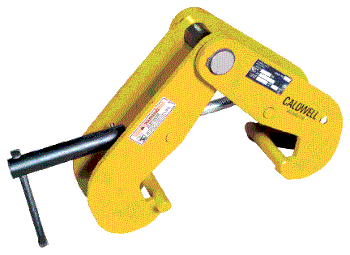

Model BFC Beam Flange Clamps

Product Features

  • Rated load capacities from 1 to 10 metric tons.
  • Proof test with certificate.
  • Lightweight and portable design.
  • Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
  • Lock nut prevents inadvertent loosening of clamp.
  • Jaw opening adjusts to a wide range of beam types and flange widths.
  • Use only for vertical loading.
  • Built-in suspension pin provides lower headroom.
  • Powder coated finish.
  • Available with Large Bail option for oversized hoist hooks.
  • 5:1 design factor meets portions of ASME B30.16.
  • Complies with ASME B30.20 and BTH-1 standards.
