This is a fixed length spreader beam that provides an economical solution, ideal for lifting in out door applications.

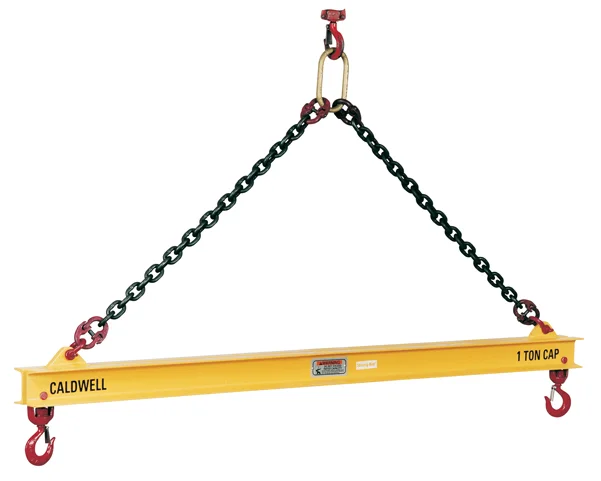

Model 30 Fixed Spreader Beam
Product Features
- Ideal where headroom is not limited.
- Adds stability to lift.
- Available with standard chain or wire rope rigging.
- Available with Adjust-A-Leg® rigging for off center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating).
- Wide range of additional sizes and capacities available.
- Complies with ASME standards.
This is an adjustable spreader beam that provide a versatile solution for handling many different sized loads, ideal for outdoor applications.

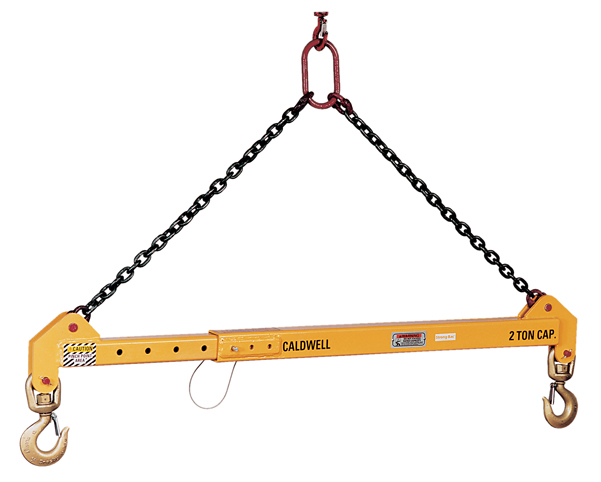

Model 32 Adjustable Spreader
Top Rigging Options
- OPTION C - Chain top rigging from beam to crane hook.
- OPTION W - Wire rope top rigging from beam to crane hook.
- OPTION A - Adjust-A-Leg® sling top rigging for off-center load adjustment (not included in QUICKSHIP Program).
Product Specifications
Product Features
- Ideal where headroom is not limited.
- Adds stability to lift.Telescopic spread standard.
- Available with standard chain or wire rope rigging.
- Available with Adjust-A-Leg® rigging for off center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating).
- Wide range of additional sizes and capacities available.
- Complies with ASME standards.
This is an adjustable spreader beam that provides a versatile solution for handling many different sized loads, ideal for outdoor applications.
Model 32 High Capacity Adjustable Spreader
Product Features
- Ideal where headroom is not limited.
- Adds stability to lift.
- Choose from a wide range of sizes and capacities.
- Telescoping adjustment at 12 inch increments.
- Select chain or wire rope top rigging.
- Custom designs available.
- Complies with ASME standards.
This beam is a convenient end fitting design that allows us to build a custom size four-point spreader beam with a QUICK SHIP delivery schedule. Capacities up to 9 tons and spreads up to 12’ x 12’.

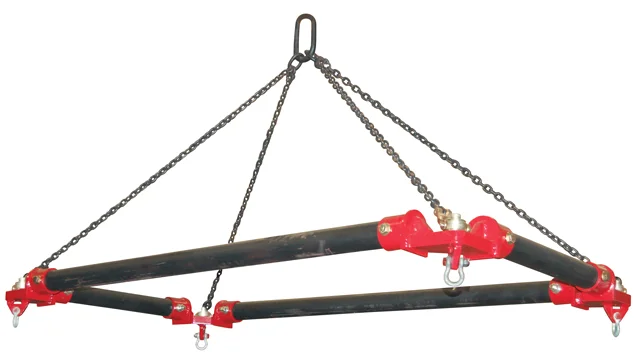

Model 34 Four Point End Fitting Beam
Bottom Rigging Options
- A. Lower lifting hooks - specify fixed or swivel.
- B. Synthetic load slings.
- C. Chain load slings.
- D. Wire rope load slings.
Note: Some rigging options could increase delivery time.
Product Specifications
Product Features
- New knock-down design is easily transported.
- 6 or 9 ton capacity.
- Spreads up to 12' x 12'.
- Four point spreader beam provides added stability
- Chain top rigging and hoist rings.
- Lower lifting shackles standard - see other options below.
- Complies with ASME standards.
This series of special spreader systems can be designed to lift loads of almost any size, or weight. Certain adjustability characteristics allow for a wide range of usage as well as handling unbalanced loads where the center of gravity is substantially off center.
Model 38 Special Spreader System
Spreader Beam Options
- Fixed length/width spreader design in rigid or bolt together style. Specify style required.
- Telescopic length/width spreader design to handle loads of varying sizes. Specify min./max. lengths required for spreader length and/or width.
Catalog
Top Rigging Options
- Fixed length 4-leg wire rope or chain sling.
- 4 point Adjust-A-Leg®load leveling sling for unbalanced loads.
BOTTOM RIGGING OPTIONS:
The type of bottom rigging required is dependent on the location of the load pick points in relation to its center of gravity. Some common applications require the following:
- Top or bottom container lifting lugs with wire rope slings.
- Chain slings with hook attachments.
- Nylon/polyester web slings.
- Boat lifting belly slings for marine applications.
- Boat lifting belly slings for marine applications.
- Vehicle lifting wheel nets.
The same end fittings that build our high capacity spreader beams are available as end fittings only. This allows you to stock one or several sizes of end fittings; work with a local steel supplier to provide cut to length schedule 80 pipe; drill accordingly and add the required top rigging. Now you can respond to your customers needs with a quickly built, ASME compliant spreader beam.
High Capacity Beam End Fittings
Product Features
- Build your own spreader beam.
- Fittings only are available in 2 business days.
- Pivoting lower lugs allow for 75° to 90° lower rigging angle.
- Complies with ASME standards when assembled to specifications using designated pipe and rigging.

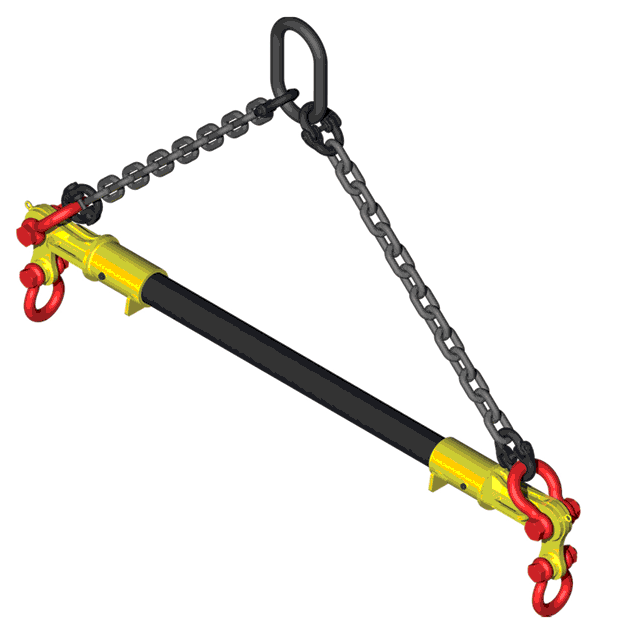

Caldwell's new High Capacity Spreader Beam is the solution you need to fill those orders where aquick delivery is required on beams with capacities ranging from 5 to 130 tons. Capacity and spread configurations are virtually limitless.
The chart below highlights sizes available from 50 to 130 tons. You can review our complete high capacity spreader beam chart, starting at 5 tons, online at www.caldwellinc.com. For beam customizations, please fill out an application evaluationform online or contact us with complete details and we will configure the high capacity spreader beam you need!
Model 30HC High Capacity Spreader Beam
Product Features
- Unique pivoting lower lugs allow for 75° to 90° lower rigging angle.
- Capacities from 5 to 130 tons.
- Beam only available in 7 - 10 days.
- Optional wire rope top rigging available.
- Complies with ASME standards.
