Load Rotation
Load Rotation
The core feature of the Posi-Turner® is the smooth and controlled rotation. The Posi-Turner® suspends and rotates objects 360 degrees with controlled rotation. The fixed bail design works well for products that symmetrically shaped.

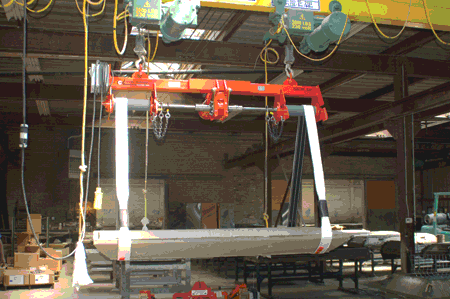

Model FS Fixed Bail
Product Features
- Lift and Rotate objects without re-rigging.
- Stop or start rotation at any point.
- Eliminates tipping or dropping work pieces and the shock load to the crane assocaited with using two cranes to roll over a load.
- Complies with ASME standards
The core feature of the Posi-Turner® is the smooth and controlled rotation. The Posi-Turner® suspends and rotates objects 360 degrees or more with controlled rotation. In addition, the leveler bail adjusts the center of gravity under the hook to balance the load with a push of a button.

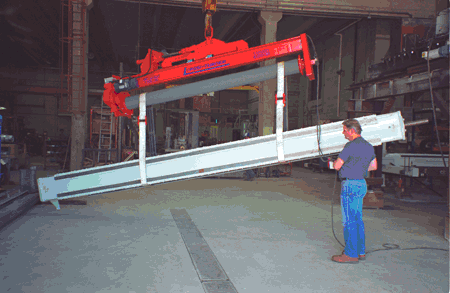

Model LS Leveler Bail
Product Features
- Lift and rotate objects without re-rigging.
- Stop or start rotation at any point.
- Eliminates tipping or droppin work pieces and the shock load to the crane associated with using two cranes to roll over a load.
- Leveler bail repositions the lifter center of gravity as needed during the load rotation to maintain a level lift.
- Complies with ASME standards.

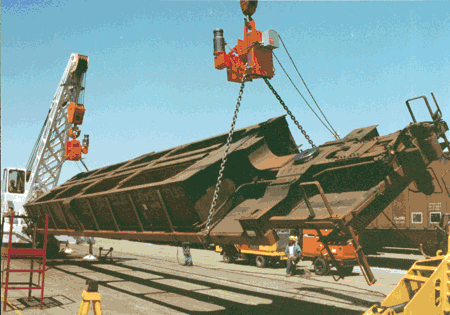

Consists of two powered drive units suspended from two cranes / hoists, with pocketed sheave driving special coil link chain slings that rotate large heavy, bulky items for assembly, welding, positioning, and inspection. Drive units can be operated independently or together, through an operator pendants(s) or remote control.
Independent Drive
Product Features
- Two powered drive units for precise control.
- Chain slings have disconnect hardware allowing them to be positioned underneath the load.
- Over travel limit switches prevent chain disconnect hardware from running over chain sprocket.
- Standard models include operator pendant on each unit for independednt operation, optional remote control allows for simultaneous operation.
The Posi-Gantri™ is a versatile tool used to turn loads in areas where using an overhead crane is not feasible. The Posi-Gantri™ can span a workbench or area where loads need to be turned during fabrication, assembly, or maintenance. The optional chain hoist can be used to place the load into the rotation slings, or a fork lift can perform this function when bringing the load to the area. Posi-Gantri™ heights can be fixed or adjustable and equipped with or without casters. Rotation slings can be polyester or wire mesh. Specials can be designed to fit your specific requirements.
Posi-Gantri™ Catalog
Product Features
- Complete material handling system.
- Heavy duty non-slip drum surface.
- Heavy duty worm gear reducer with chain and sprocket final drive.
- Electric brake motor.
- Bolted assembly to head beam.
- Push button pendant control.
- Posi-Gantri™ can be ordered either with fixed or adjustable heights. Please refer to our Krane-King® section for additional gantry crane information.
- Can also be added to existing gantry cranes, please contact factory for details.
