Steel Erection
Steel Erection
The Rig-Release Remote Releasing Hook will allow you to set loads - and then - quickly, efficiently, and safely release the rigging from a safe distance. The Rig-Release simply hooks to your crane or spreader beam. You can then attach the slings(s) directly to the Rig-Release and rig the load. Once the load line is set and the crane line is slack, pull the release rope to release the sling(s). No need for a man lift on site or to have a worker crawl out (or up) just to disconnect sling(s). It's all done from a safe distance.
Model RR Manual Release
Product Features
- NEW- Rope Guide allows rigging to be released when hook is either above or beside the operator. If hook is located below the operator, please see Upward Pull option in the special application section.
- Designed for rugged outdoor use.
- Easy to use - simply rig, lift, set and release.
- LOCK & CAPTURE feature engages with very little load weight (see Minimum Load in chart below).
- Rated load capacity can be lifted from either Lift Arm or the lower Strip Sling Hook. Do not exceed rated capacity of hook.
- Oversized bail for easy mounting on crane hook - 5, 10 & 15 ton units provided with fixed bails.
- Designed and manufactured to ASME standards.
The Rig-Release Remote Releasing Hook will allow you to set loads - and then - quickly, efficiently, and safely release the rigging from a safe distance. The Rig-Release simply hooks to your crane or spreader beam. You can then attach the slings(s) directly to the Rig-Release and rig the load. Once the load line is set and the crane line is slack, pull the release rope to release the sling(s). No need for a man lift on site or to have a worker crawl out (or up) just to disconnect sling(s). It's all done from a safe distance.
Model RR-R Radio Controlled Release
Product Features
- Allows rigging to be released from a safe distance with the push of a button.
- Designed for rugged outdoor use.
- Easy to use - simply rig, lift, set and release.
- LOCK & CAPTURE feature engages with very little load weight (see Minimum Load in chart below).
- Includes two 12 VDC 0.8 Amp Hr. sealed maintenance free lead acid batteries (rechargeable).
- Includes one charger, and one vehicle adapter for standard 12 VDC vehicle outlets.
- Battery life lasts through an 8 hour shift, depending on frequency of operation.
- Minimum required cycle time is 1 - 2 minutes between releases.
- Over sized bail for easy mounting on crane hook, 5 ton unit provided with fixed bail.
- Designed and manufactured to ASME standards.

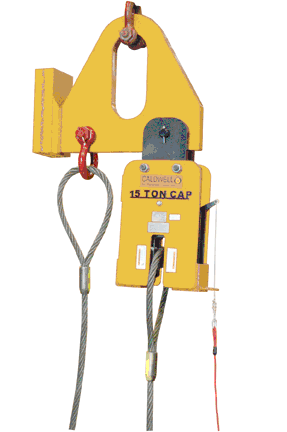

Extended capacity lifting system for basket hitch lifting configurations that allows loads to be set - and then - quickly, efficiently, and safely release the rigging from a safe distance.
Model RR-EC Extended Capacity Manual Release
Product Features
- For basket hitch only.
- Designed for rugged outdoor use.
- 20 and 30 ton capacity manual release units.
- Easy to use - simply rig, lift, set and release.
- Over sized bail for easy mounting on crane hook.
- Counter balanced to hang level.
- Rope Guide allows rigging to be released when hook is either above or beside the operator. If hook is located below the operator please see Upward Pull option in the special application section.
- Designed for rugged outdoor use.
- LOCK & CAPTURE feature engages with very little load weight (see Minimum Load in chart below).
- Rated load capacity can be lifted from either Lift Arm or the lower Strip Sling Hook. Do not exceed rated capacity of hook.
- Designed and manufactured to ASME standards.
Extended Capacity Radio Controlled - Model RR-EC
Extended capacity lifting system for basket hitch lifting configurations that allows loads to be set - and then - quickly, efficiently, and safely release the rigging from a safe distance.
Model RR-EC Extended Capacity Radio Controlled
Product Features
- For basket hitch only.
- Designed for rugged outdoor use.
- Easy to use - simply rig, lift, set and release.
- Over sized bail for easy mounting on crane hook.
- Counter balanced to hang level.
- LOCK & CAPTURE feature engages with very little load weight (see Minimum Load in chart below).
- Allows rigging to be released from a safe distance with the push of a button.
- Includes two 12 VDC 0.8 Amp Hr. sealed maintenance free lead acid batteries (rechargeable).
- Includes one charger, and one vehicle adapter for standard 12 VDC vehicle outlets.
- Battery life lasts through an 8 hour shift, depending on frequency of operation.
- Minimum required cycle time is 1 - 2 minutes between releases.
- Designed and manufactured to ASME standards.
Model F Beam Grabs
Product Features
- Heavy duty design.
- These grabs provide an efficient method for handling wide flange beam sections and plate girders.
- Clamps have a recessed base to accept studs welded to a beam’s surface.
- Beam grabs eliminate the need for slings or chokers.
- Use only for vertical lifting.
- For longer beams or girders, use units in pairs in conjunction with a spreader/lifting beam.
- Complies with ASME standards.
Model GC Girder Clamps
Product Features
- These clamps provide an efficient method for handling wide flange beam sections and plate girders.
- Screw-spindle design ensures positive grip.
- Simple design ensures minimum maintenance.
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
- Jaw opening adjusts to a wide range of beam types and flange widths.
- Use only for vertical lifting.
- Complies with ASME standards.

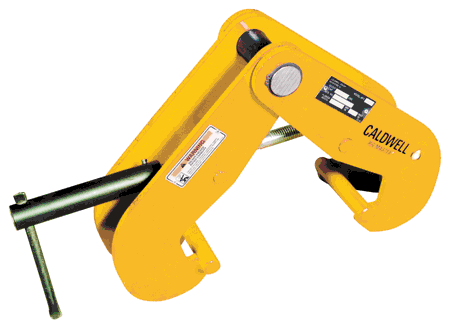

Model BFC Beam Flange Clamps
Product Features
- Rated load capacities from 1 to 10 tons.
- Lightweight and portable design.
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
- Jaw opening adjusts to a wide range of beam types and flange widths.
- Use only for vertical lifting.
- Built-in suspension pin provides lower headroom.
- Available with Large Bail option for oversized hoist hooks.
- Complies with ASME standards.
