Caldwell Free Standing Jibs
"Heavy Duty Friction Free" Full Circle Jib Crane designed for easy installation, minimal maintenance requirements, and years of trouble free service.
Heavy duty design with many quality features:
- Unique four roller design with articulated roller housing provides easy, precise rotation while reducing concentrated roller pressure on the pipe for most "normal" industrial applications.
- Jib head is designed for exact bearing alignment for trouble-free installations and "friction-free" rotation. Adjustable rollers insure proper boom leveling.
- Thick, heavy duty base plate with a unique slot pattern makes installation simpler and faster; and adds rigidity to the crane.
- Front clamp connection allows for additional leveling capability.
- Welded end stops provide a positive and permanent hoist/trolley stop, and allows for the maximum in trolley travel.
- Optional hoist/trolley package please see pages H.36 - H.37.

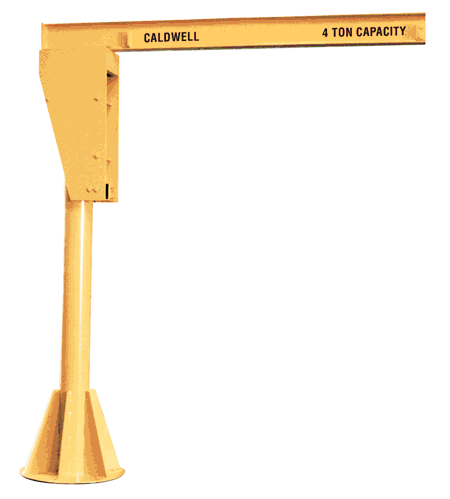

Model A360 Base Mounted
All cranes have been designed to easily accept a kit for powered rotation either with the initial order or at a later date. Krane-King® Motor Drive Packages and other accessories are available in our Options & Accessories Section.
Product Specifications
Product Features
- Spans and height combination's from 8’-20’.
- 360° rotation (when not obstructed).
- Design allows for easy rotation, even under full load.
- Units are fully self-supporting (must be anchored to specified foundation).
- Conforms to AISC, OSHA and CMAA standards.
This unit is selected when bottom base & gusset plates interfere with cranes placement.
Model 360 Foundation Mounted
Consult Factory
Provide height under jib arm, jib arm length (span), and capacity required for an application review.
Product Specifications
Product Features
- Span and height combinations from 8’ - 20’.
- Capacities to 5 tons.
- 360° rotation (when not obstructed).
- Design allows for easy rotation, even under full load.
- Units are fully self-supporting (must be anchored to specified foundation).
- Conforms to AISC, OSHA, and CMAA standards.
- See pages H.28 - H.29 for accessories.
This unit is selected if the cranes removal is an important factor.
Model C360 Sleeve Mounted
Consult Factory
Provide height under jib arm, jib arm length (span), and capacity required for an application review.
Product Specifications
Product Features
- Span and height combinations from 8’ - 20’.
- Capacities to 5 tons.
- 360° rotation (when not obstructed).
- Design allows for easy rotation, even under full load.
- Units are fully self-supporting (must be anchored to
- specified foundation).
- Conforms to AISC, OSHA, and CMAA standards.
- See pages H.28 - H.29 for accessories.
