Caldwell Beam, Girder and Rail Grabs
Caldwell Beam, Girder, and Rail Grabs
The solution for ANY lifting angle.

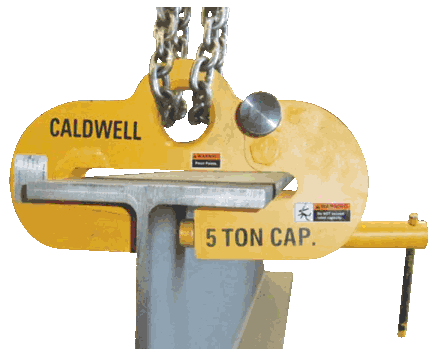

Designed to positively grip the center web of the I-beam, this clamp will handle the full rated capacity along any direction from the lifting eye.The clamp secures to the web of the I-beam,while the throat of the clamp pinches the flange during side loading for positive contact during lifting or suspending applications.
Beam Web Clamp
Product Features
- Designed to accommodate side load applications.
- Full rated capacity at any lifting angle.
- Low headroom design.
- Securely grips beam web and flange.
- Use for lifting or hanging.
- Complies with ASME B30.20 and BTH-1.
Product Features

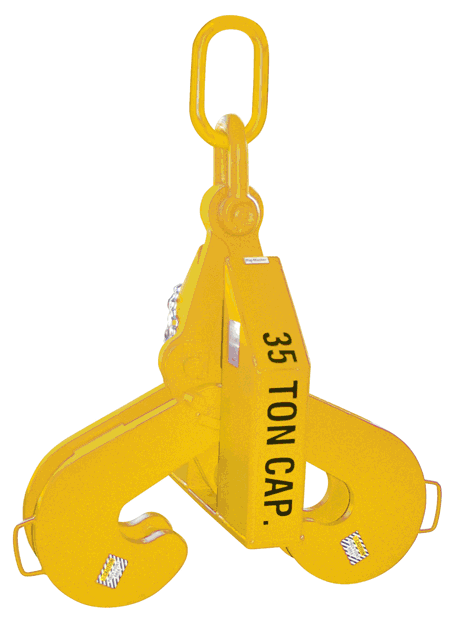

- Heavy duty design.
- These grabs provide an efficient method for handling wide flange beam sections and plate girders.
- Clamps have a recessed base to accept studs welded to a beam’s surface.
- Beam grabs eliminate the need for slings or chokers.
- Use only for vertical lifting.
- For longer beams or girders, use units in pairs in conjunction with a spreader/lifting beam.
- Complies with ASME standards.

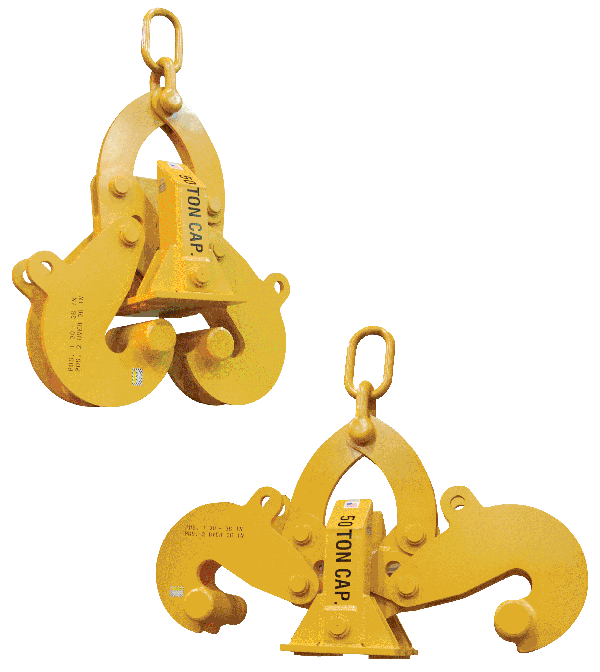

Model F-50 Beam Grabs Extended
Product Features
- Custom designed for your application.
- Heavy duty grab handles wide flange beam sections and plate girders.
- Dog points on base furnish additional gripping force.
- Hook design assures contact to the beam flange or girder.
- Both hooks have chain holes - attach chain slings and use for opening hooks.
- Adjustable hook positions fit a set range of flange widths.
- For long loads, use two heavy-duty beam clamps and one spreader beam.
- Complies with ASME standards.
Product Features

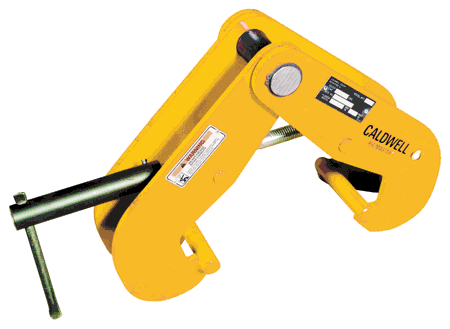

- These clamps provide an efficient method for handling wide flange beam sections and plate girders.
- Screw-spindle design ensures positive grip.
- Simple design ensures minimum maintenance.
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
- Jaw opening adjusts to a wide range of beam types and flange widths.
- Use only for vertical lifting.
- Complies with ASME standards.
Product Features
- Rated load capacities from 1 to 10 tons.
- Lightweight and portable design.
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
- Jaw opening adjusts to a wide range of beam types and flange widths.
- Use only for vertical lifting.
- Built-in suspension pin provides lower headroom.
- Available with Large Bail option for oversized hoist hooks.
- Complies with ASME standards.
Product Features
- Rated load capacity of one ton.
- Economical and convenient.
- Lightweight and portable design, high strength construction.
- Use only for vertical lifting.
- Complies with ASME standards.
Product Features

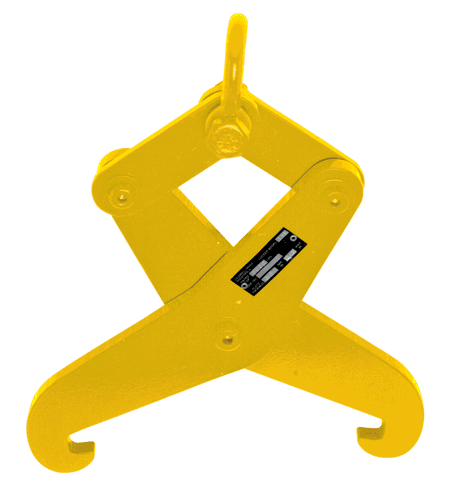

- Tong provided with lifting shackle.
- Load must be balanced and controlled when lifting.
- Use only for vertical lifting.
- For added stability when handling longer loads, use in pairs with a spreader beam.
- Complies with ASME standards.
Product Features

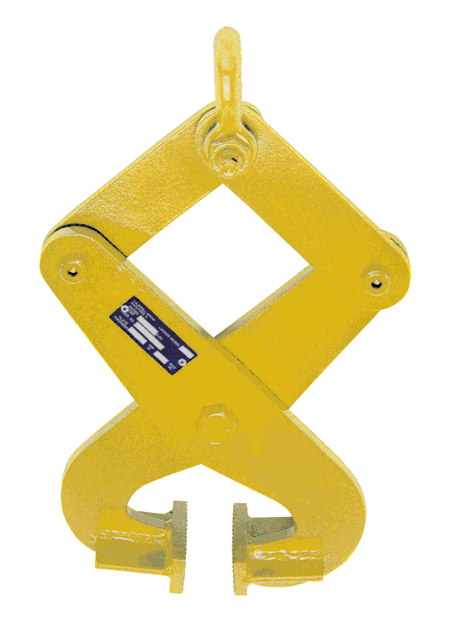

- Rail Tongs are designed to handle all standard size rails.
- Tongs are provided with non-slip machined diamond face gripping pads.
- Load must be balanced and controlled when lifting.
- Complies with ASME standards.
