Caldwell Lifting Beams 2
Caldwell Lifting Beams
Page 2 of 2
Adjust lifting bail to be positioned over the load center gravity before lifting the load.
Model 24 Adjustable Bail Lifting Beam
Product Options
OPTION A - EXTRA HOLES - Allows for multiple hook positioning. Specify number and spread(s) required.
OPTION B - FASPINS - For ease of positioning hooks with quick release.Specify number of faspins required.
OPTION C - EXTRA HOOKS - Allows for multiple pick points. Specify number of hooks required.
OPTION D - LOWER HEADROOM - Lifting pin located between structural channel. (Hoist hook information must be supplied).
Product Features
Handles off center loads by adjusting the bail before a lift.
Adjustable spread options available.
Swivel hooks with hook latches standard.
Wide range of sizes and capacities available.
Complies with ASME standards.

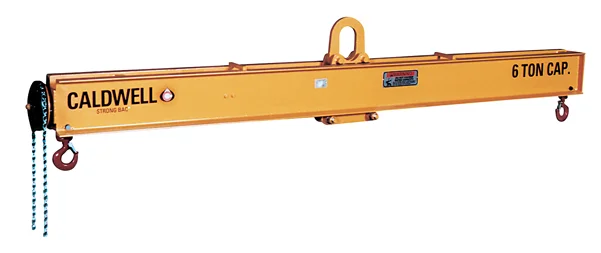

Use chain wheel to adjust lifting bail to be positioned over the load center of gravity before lifting the load.
Model 26 Load Leveler
Product Options
OPTION A - EXTRA HOLES - Allows for multiple hook positioning. Specify number and spread(s) required.*Could increase headroom.
OPTION B - FASPINS - For ease of positioning hooks with quick release. Specify number of faspins required.
OPTION C - EXTRA HOOKS - Allows for multiple pick points.Specify number of hooks required.
MOTORIZED ADJUSTMENT Please see our Posi-Leveler™
Catalog
Product Features
Handles off center loads by adjusting the bail before a lift.
Infinite adjustment of bail within range.
Swivel hooks with hook latches standard.
Wide range of sizes and capacities available.
Complies with ASME standards.
The Posi-Leveler™allows for motorized adjustment of the beams central lifting point during the lift to always maintain a balanced load. This feature can be used for fine adjustment of the center of gravity during the lift. Leveling uneven loads during the lift saves rigging time and promotes a safer work environment.
Model 26P Posi-Leveler™
Ideal For
Bundles
Odd or irregular shaped loads
Weldments
Paper roll handling
Sheet handling
Product Features
Motorized Posi-Leveler™ adjusts to the center of gravity during lift.
Swivel hooks with hook latches are standard.
Custom sizes are available.
Push button pendent control with radio control option.
Standard bail adjustment 6" each side of center, with optional 12" adjustment each side of center available.
Complies with ASME standards.
Designed specifically for handling bulk containers with nylon loops in each corner.
Model 27SL Bulk Container
Product Features
Constructed of tubing for smooth surface with no sharp edges.
Low headroom design.
Easily attach to load with open lifting lugs.
Lug spacing will hold up to a 3” wide loop.
Oversized lifting eye to accept a wide range of hooks.
Complies with ASME standards.
These standard configurations cover a wide range of requirement for many multi-point lifting applications.
Model 27D Standard Adjustable Four Point
Product Features
Low headroom design.
Swivel hooks with latches standard.
Adjustable spreads on 1' increments.
Faspins for easy crossarm adjustment.
Complies with ASME standards.
This low headroom lifting beam handles large loads using multiple pick points. Each unit is custom designed for your specific application. Complies with ASME standards.
Model 27F Four Point Beam
Product Options
OPTION A - Multiple Bails: Use 2 or 4 hoists to increase lifting stability.
OPTION B - Adjustable Bail: Is used when load-leveling capability is required along length of load.
OPTION C - Adjustable Spread: Use when adjustability in length and width is required.
This low headroom lifting beam handles large loads using multiple pick points. Each unit is custom designed for your specific application. Complies with ASME standards.
Model 27T Three Point Beam
Product Options
OPTION A MULTIPLE BAILS - Use 2 hoists to increase lifting stability.
OPTION B ADJUSTABLE BAIL - Is used when load-leveling capability is required along length of load.
OPTION C ADJUSTABLE SPREAD - Use when adjustability in length and width is required.

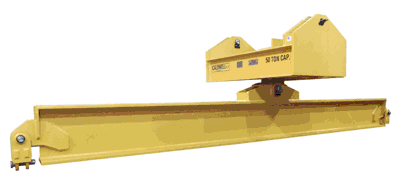

A specially designed lifting and rotating beam using two cranes or two hoists to horizontally rotate a load. A position locking pin holds the load rotation at a designated position. Available with motorized rotation.
Model 21 Twin Hoist Rotating Beam
Product Options
OPTION A - TWIN HOOKS: Used in conjunction with basket hitch slings.
OPTION B - J HOOKS: Generally required to lift paper rolls or similar application. (See our Roll Lifting Beams)
OPTION C - MOTORIZED ROTATION: Allows remote positioning of a load.
OPTION D - LOWER HEADROOM BAILS: Utilized when headroom must be held to a minimum. Crane hook data must be supplied.
Product Features
Wide range of sizes and capacities available.
Maximum 20 feet (upper and lower) beam length.
Complies with ASME standards.
Designed to efficiently handle standard chlorine gas cylinders. Standard size determined by the Chlorine Institute is 80-3/4” to 82-1/4” in length. Special low headroom modification is available.
Model 28 Chlorine Cylinder Beam
