Coil Handling
Coil Handling
Page 1 of 3

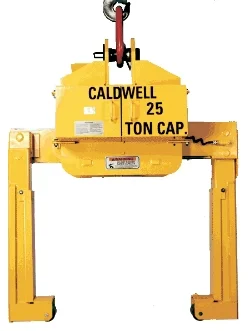

Product Features
- Motorized leg drive maximizes the efficient handling of coils.
- Leg drive speed - 2.8” per second.
- Narrow aisle stacking maximizes coil storage floor space.
- Curved lifting pads for coil protection.
- High impact plastic toe rollers prevent lifter foot contact.
- Anti-clamp limit switch protects coil during closing of lifter.
- Lockout limit switch prevents inadvertent leg opening during lift.
- Alloy steel pin bail.
- Easily replaceable slide wear guides.
- Design allows for easy maintenance access to drive components.
- Designed to operate on AC power supply.
- Field upgradeable to rotating style.
- Complies with ASME standards.
Product Features
- Motorized leg drive maximizes the efficient handling of coils.
- Leg drive speed - 2.8” per second.
- Narrow aisle stacking maximizes coil storage floor space.
- Curved lifting pads for coil protection.
- High impact plastic toe rollers prevent lifter foot contact.
- Anti-clamp limit switch protects coil during closing of lifter.
- Heavy duty torque limiting drive protection during maximum
- Open/closed conditions.
- Lockout limit switch prevents inadvertent leg opening during lift.
- Alloy steel pin bail.
- Easily replaceable slide wear guides.
- Design allows for easy maintenance access to drive components.
- Designed to operate on AC power supply.
- Motorized 350° rotation at approximately 2 RPM.
- Complies with ASME standards.

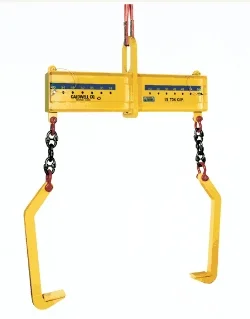

Model 86 Double Leg Coil Lifters
Product Features
- Most economical of the two-sided coil lifters.
- Two-sided coil lifter requires less aisle space.
- Lifting hook width adjustment pin is easy to use.
- Hooks manufactured from high tensile alloy steel.
- Coil width adjustment indicators for easy.
- Hook placement.
- Optional coil protection available.
- Complies with ASME standards.
Model 84 Telescoping Coil Lifter
Product Features
- Chain wheel provides easy manual operation.
- Two-sided coil lifter requires less aisle space.
- Curved lifting pad minimizes coil damage.
- Self locking worm gear prevents legs from inadvertent opening.
- Available with hand wheel leg
- Drive option.
- Available with motorized leg
- Drive option.
- Complies with ASME standards.
Model 82 Heavy Duty C-Hook
Product Features
- Designed for heavy duty applications.
- High tensile alloy steel plate reduces physical size and weight.
- Counter balanced to hang level when empty.
- Inside radius on hooks avoid coil edge contact.
- Curved coil saddle is standard.
- Guide handles for ease of hook positioning.
- Handles a wide range of coil widths.
- Available with optional padding for additional coil protection.
- Complies with ASME standards.
Close Stacking C-Hook - Model 82
Model 82 Close Stacking C-Hook
Product Features
- Recessed counterweight allows for close stacking of coils which
- Maximizes floor space.
- Handles a wide range of coil widths.
- Designed for heavy duty application.
- High tensile alloy steel plate reduces physical size and weight.
- Counter balanced to hang level when empty.
- Inside radius on hooks avoid coil edge contact.
- Curved coil saddle is standard.
- Guide handle for ease of hook positioning.
- Available with optional padding for additional coil protection.
- Complies with ASME standards.
Model 82LA Slit Coil C-Hook
Product Features
- Designed for heavy duty applications.
- Handles multiple slit coils which maximizes handling efficiency.
- Recessed counterweight minimizes interference with equipment or other obstacles.
- High tensile alloy steel plate reduces physical size and weight.
- Counter balanced to hang level when empty.
- Inside radius on hooks avoid coil edge contact.
- Curved coil saddle is standard.
- Guide handles for ease of hook positioning.
- Available with optional padding for additional coil protection.
- Complies with ASME standards.
