Plate and Sheet Handling 4

Plate and Sheet Handling

Page 4 of 5


For lifting smaller rectangular shaped material. Width should not exceed 5 times the pad diameter - see specifications below for pad diameter.

Model B Economy Twin Pad - Standard Duty

Product Features

  • Ball mounted vacuum pads.
  • Brass fittings.
  • Push lock hose - designed for 250 psi.
  • Slide valves allow for manual isolation of vacuum pads.
  • Muffler/filter is spin on type for easy change out.
  • Standard load beam lengths of 4', 5', 6' and 8', other sizes available, consult factory.

For lifting smaller rectangular shaped material. Width should not exceed 5 times the pad diameter - see specifications below for pad diameter.

Model B Industrial Twin Pad - Heavy Duty

Product Features

  • Ball mounted vacuum pads.
  • Brass fittings.
  • Push lock hose - designed for 250 psi.
  • Slide valves allow for manual isolation of vacuum pads.
  • Muffler/filter is spin on type for easy change out.
  • Standard load beam lengths of 4', 5', 6' and 8', other sizes available, consult factory.

For lifting long, narrow sized material. Width should not exceed 5 times the pad diameter - see specifications below for pad diameter.

Model C Economy Four Inline Pads - Standard Duty

Product Features

  • Ball mounted vacuum pads.
  • Brass fittings.
  • Push lock hose - designed for 250 psi.
  • Slide valves allow for manual isolation of vacuum pads.
  • Muffler/filter is spin on type for easy change out.
  • Standard load beam lengths of 4', 5', 6', 8', 10', 12', 15', and 20', other sizes available, consult factory.

For lifting long, narrow sized material. Width should not exceed 5 times the pad diameter - see specifications below for pad diameter.

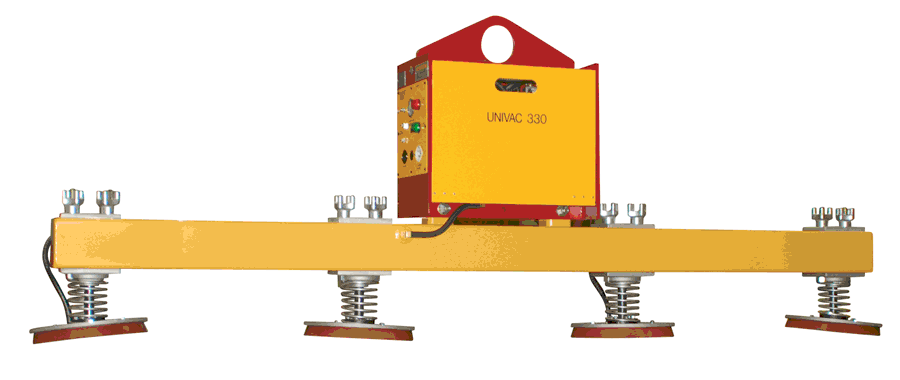

Model C Industrial Four Inline Pads - Heavy Duty

Product Features

  • Ball mounted vacuum pads.
  • Brass fittings.
  • Push lock hose - designed for 250 psi.
  • Slide valves allow for manual isolation of vacuum pads.
  • Muffler/filter is spin on type for easy change out.
  • Standard load beam lengths of 4', 5', 6', 8', 10', 12', 15', and 20', other sizes available, consult factory.
