For lifting wide or thin material. The crossarms make the load easier to balance.

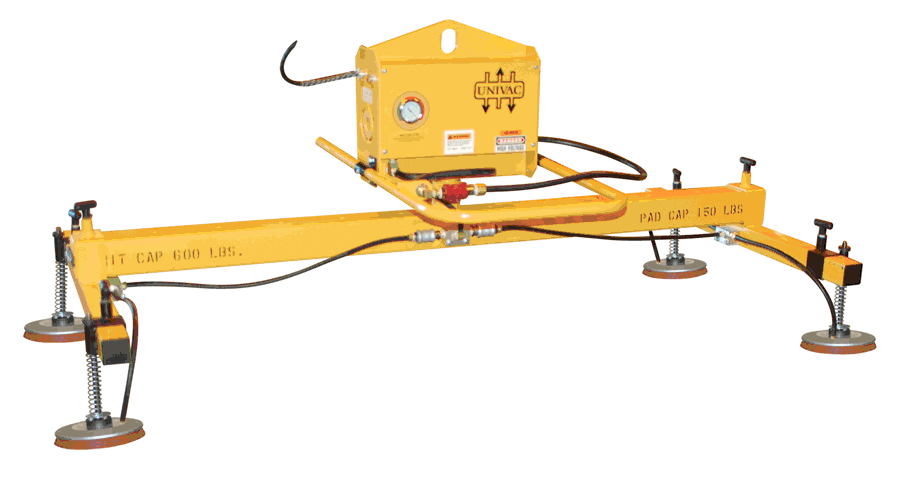

Model D Economy 2 Crossarm / 4 Pad
Product Features
- Ball mounted vacuum pads.
- Brass fittings.
- Push lock hose - designed for 250 psi.
- Slide valves allow for manual isolation of vacuum pads.
- Muffler/filter is spin on type for easy change out.
- Standard load beam lengths of 5', 6' and 8', other sizes available, consult factory.
For lifting wide or thin material. Crossarms allow for extra stability for wider material and reduce amount of deflection for thinner material.

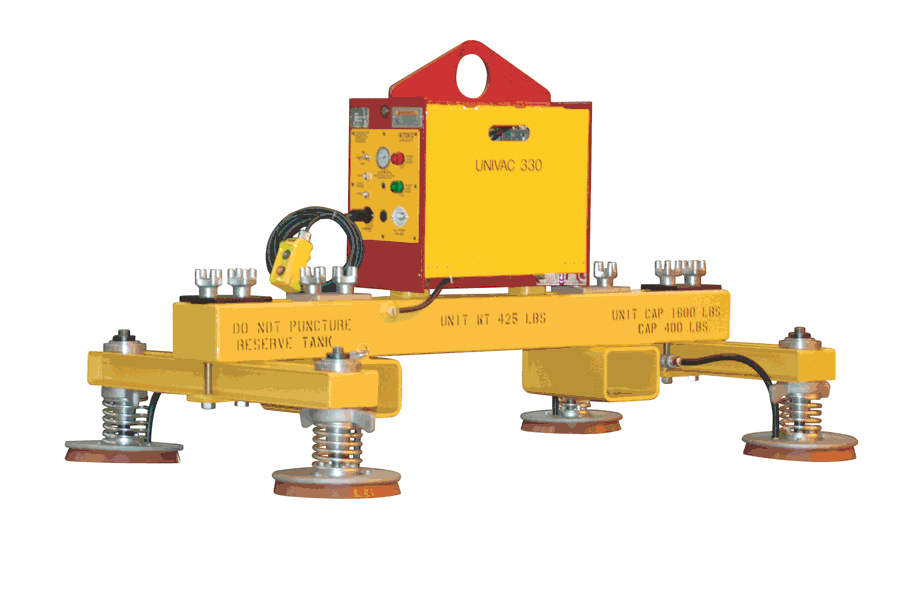

Model D Industrial 2 Crossarm / 4 Pad
Product Features
- Ball mounted vacuum pads.
- Brass fittings.
- Push lock hose - designed for 250 psi.Slide valves allow for manual isolation of vacuum pads.
- Muffler/filter is spin on type for easy change out.
- Standard load beam lengths of 5', 6' and 8', other sizes available, consult factory.
For lifting long, wide, and moderate weight material or to provide increased support of thin material.
Model E Economy 3 Crossarm / 6 Pad
Product Features
- Ball mounted vacuum pads.
- Brass fittings.
- Push lock hose - designed for 250 psi.
- Slide valves allow for manual isolation of vacuum pads.
- Muffler/filter is spin on type for easy change out.
- Standard load beam lengths of 5', 6', 8', 10', 12' and 15', other sizes available, consult factory.
For lifting long, wide, and moderate weight material or to provide increased support of thin material.

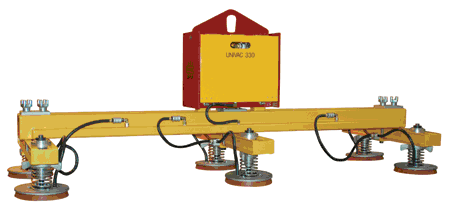

Model E Industrial 3 Crossarm / 6 Pad
Product Features
- Ball mounted vacuum pads.
- Brass fittings.
- Push lock hose - designed for 250 psi.
- Slide valves allow for manual isolation of vacuum pads.
- Muffler/filter is spin on type for easy change out.
- Standard load beam lengths of 5', 6', 8', 10', 12' and 15', other sizes available, consult factory.
For lifting longer, wider and heavier weight material or to provide increased support of thin material.
Model F Economy 4 Crossarm / 8-12 Pad
Product Features
- Ball mounted vacuum pads.
- Brass fittings.
- Push lock hose - designed for 250 psi.
- Slide valves allow for manual isolation of vacuum pads.
- Muffler/filter is spin on type for easy change out.
- Standard load beam lengths of 6', 8', 10', 12', 15' and 20', other sizes available, consult factory.
For lifting longer, wider and heavier weight material or to provide increased support of thin material.

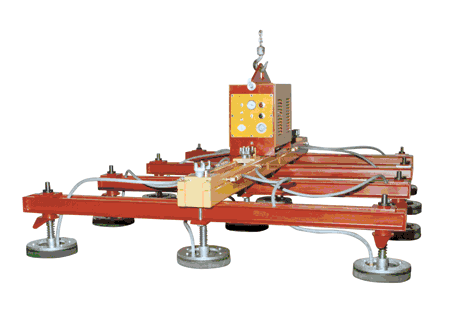

Model F Industrial 4 Crossarm / 8-12 Pad
Product Features
- Ball mounted vacuum pads.
- Brass fittings.
- Push lock hose - designed for 250 psi.
- Slide valves allow for manual isolation of vacuum pads.
- Muffler/filter is spin on type for easy change out.
- Standard load beam lengths of 6', 8', 10', 12', 15' and 20', other sizes available, consult factory.
